Ground Spur Pinion Shafts (SSGS)
Spur Gears

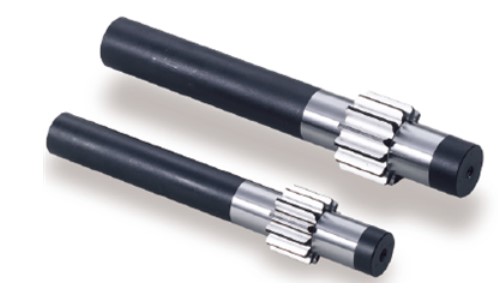

The SSGS Ground Shaft Pinions are Spur Gears made from carbon steel, are induction hardened, and the teeth are ground finished. The shaft ends are not hardened specifically to allow modification of shafts to fit your bearings.
Item # |
List Price |
Module |
No. of Teeth |

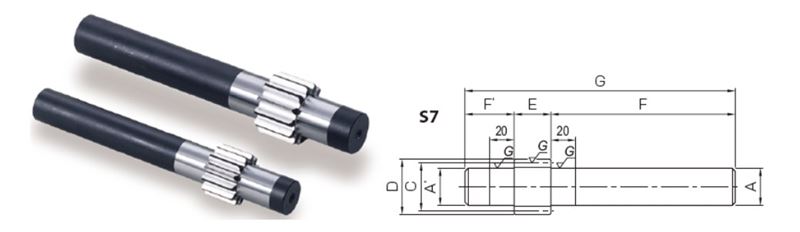

Shaft Diameter Left (A') |
Shaft Diameter Right (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Face Width (E) |
Total Length (G) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SSGS1.5-10 SSGS1.5-10/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 10 | Shaft Diameter Left (A') N/A 0.480 in12.2 mm | Shaft Diameter Right (A) N/A 0.480 in12.2 mm | Pitch Diameter (C) N/A 0.591 in15 mm | Outer Diameter (D) N/A 0.762 in19.35 mm | Face Width (E) N/A 0.591 in15 mm | Total Length (G) N/A 5.512 in140 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS1.5-11 SSGS1.5-11/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 11 | Shaft Diameter Left (A') N/A 0.539 in13.7 mm | Shaft Diameter Right (A) N/A 0.539 in13.7 mm | Pitch Diameter (C) N/A 0.650 in16.5 mm | Outer Diameter (D) N/A 0.821 in20.85 mm | Face Width (E) N/A 0.591 in15 mm | Total Length (G) N/A 5.512 in140 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS1.5-12 SSGS1.5-12/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 12 | Shaft Diameter Left (A') N/A 0.539 in13.7 mm | Shaft Diameter Right (A) N/A 0.539 in13.7 mm | Pitch Diameter (C) N/A 0.709 in18 mm | Outer Diameter (D) N/A 0.827 in21 mm | Face Width (E) N/A 0.591 in15 mm | Total Length (G) N/A 5.512 in140 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS1.5-13 SSGS1.5-13/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 13 | Shaft Diameter Left (A') N/A 0.598 in15.2 mm | Shaft Diameter Right (A) N/A 0.598 in15.2 mm | Pitch Diameter (C) N/A 0.768 in19.5 mm | Outer Diameter (D) N/A 0.886 in22.5 mm | Face Width (E) N/A 0.591 in15 mm | Total Length (G) N/A 5.512 in140 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS2-10 SSGS2-10/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 10 | Shaft Diameter Left (A') N/A 0.638 in16.2 mm | Shaft Diameter Right (A) N/A 0.638 in16.2 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 1.016 in25.8 mm | Face Width (E) N/A 0.787 in20 mm | Total Length (G) N/A 6.693 in170 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS2-11 SSGS2-11/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 11 | Shaft Diameter Left (A') N/A 0.717 in18.2 mm | Shaft Diameter Right (A) N/A 0.717 in18.2 mm | Pitch Diameter (C) N/A 0.866 in22 mm | Outer Diameter (D) N/A 1.094 in27.8 mm | Face Width (E) N/A 0.787 in20 mm | Total Length (G) N/A 6.693 in170 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS2-12 SSGS2-12/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 12 | Shaft Diameter Left (A') N/A 0.717 in18.2 mm | Shaft Diameter Right (A) N/A 0.717 in18.2 mm | Pitch Diameter (C) N/A 0.945 in24 mm | Outer Diameter (D) N/A 1.102 in28 mm | Face Width (E) N/A 0.787 in20 mm | Total Length (G) N/A 6.693 in170 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS2-13 SSGS2-13/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 13 | Shaft Diameter Left (A') N/A 0.795 in20.2 mm | Shaft Diameter Right (A) N/A 0.795 in20.2 mm | Pitch Diameter (C) N/A 1.024 in26 mm | Outer Diameter (D) N/A 1.181 in30 mm | Face Width (E) N/A 0.787 in20 mm | Total Length (G) N/A 6.693 in170 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS2.5-10 SSGS2.5-10/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 10 | Shaft Diameter Left (A') N/A 0.795 in20.2 mm | Shaft Diameter Right (A) N/A 0.795 in20.2 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.270 in32.25 mm | Face Width (E) N/A 0.984 in25 mm | Total Length (G) N/A 7.677 in195 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS2.5-11 SSGS2.5-11/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 11 | Shaft Diameter Left (A') N/A 0.894 in22.7 mm | Shaft Diameter Right (A) N/A 0.894 in22.7 mm | Pitch Diameter (C) N/A 1.083 in27.5 mm | Outer Diameter (D) N/A 1.368 in34.75 mm | Face Width (E) N/A 0.984 in25 mm | Total Length (G) N/A 7.677 in195 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS2.5-12 SSGS2.5-12/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 12 | Shaft Diameter Left (A') N/A 0.894 in22.7 mm | Shaft Diameter Right (A) N/A 0.894 in22.7 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.378 in35 mm | Face Width (E) N/A 0.984 in25 mm | Total Length (G) N/A 7.677 in195 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS2.5-13 SSGS2.5-13/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 13 | Shaft Diameter Left (A') N/A 0.992 in25.2 mm | Shaft Diameter Right (A) N/A 0.992 in25.2 mm | Pitch Diameter (C) N/A 1.280 in32.5 mm | Outer Diameter (D) N/A 1.476 in37.5 mm | Face Width (E) N/A 0.984 in25 mm | Total Length (G) N/A 7.677 in195 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS3-10 SSGS3-10/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 10 | Shaft Diameter Left (A') N/A 0.953 in24.2 mm | Shaft Diameter Right (A) N/A 0.953 in24.2 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.524 in38.7 mm | Face Width (E) N/A 1.181 in30 mm | Total Length (G) N/A 8.661 in220 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS3-11 SSGS3-11/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 11 | Shaft Diameter Left (A') N/A 1.071 in27.2 mm | Shaft Diameter Right (A) N/A 1.071 in27.2 mm | Pitch Diameter (C) N/A 1.299 in33 mm | Outer Diameter (D) N/A 1.642 in41.7 mm | Face Width (E) N/A 1.181 in30 mm | Total Length (G) N/A 8.661 in220 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS3-12 SSGS3-12/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 12 | Shaft Diameter Left (A') N/A 1.071 in27.2 mm | Shaft Diameter Right (A) N/A 1.071 in27.2 mm | Pitch Diameter (C) N/A 1.417 in36 mm | Outer Diameter (D) N/A 1.654 in42 mm | Face Width (E) N/A 1.181 in30 mm | Total Length (G) N/A 8.661 in220 mm | CAD N/A |
Add To Cart
Request Quote |
| SSGS3-13 SSGS3-13/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 13 | Shaft Diameter Left (A') N/A 1.189 in30.2 mm | Shaft Diameter Right (A) N/A 1.189 in30.2 mm | Pitch Diameter (C) N/A 1.535 in39 mm | Outer Diameter (D) N/A 1.772 in45 mm | Face Width (E) N/A 1.181 in30 mm | Total Length (G) N/A 8.661 in220 mm | CAD N/A |
Add To Cart
Request Quote |
