Ground Zerol Miter Gears (SMZG) On KHK Gears

A spiral miter gear with a helix angle less than 10 °. Receives forces from the same direction as straight miter gears receive and have excellent precision properties.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

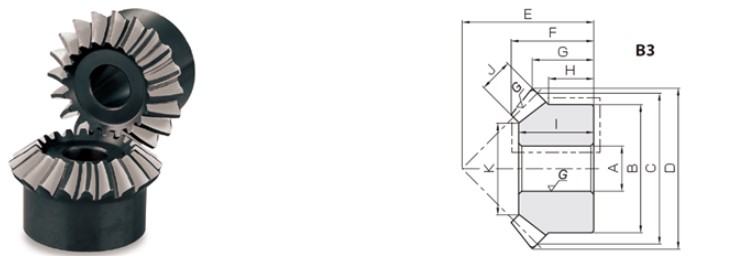

Item #	List Price	Module	No. of Teeth	Shape	Bore (A)	Pitch Diameter (C)	Outer Diameter (D)	CAD	Add To Cart/Request Quote

SMZG2.5-20L	QUOTE	N/A 2.5	N/A 20	N/A B3	N/A 0.551 in14 mm	N/A 1.969 in50 mm	N/A 2.132 in54.16 mm	N/A	Add To Cart Request Quote
SMZG2.5-20R	QUOTE	N/A 2.5	N/A 20	N/A B3	N/A 0.551 in14 mm	N/A 1.969 in50 mm	N/A 2.132 in54.16 mm	N/A	Add To Cart Request Quote
SMZG2-20L	QUOTE	N/A 2	N/A 20	N/A B3	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.706 in43.32 mm	N/A	Add To Cart Request Quote
SMZG2-20R	QUOTE	N/A 2	N/A 20	N/A B3	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.706 in43.32 mm	N/A	Add To Cart Request Quote
SMZG3-20L	QUOTE	N/A 3	N/A 20	N/A B3	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.555 in64.89 mm	N/A	Add To Cart Request Quote
SMZG3-20R	QUOTE	N/A 3	N/A 20	N/A B3	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.555 in64.89 mm	N/A	Add To Cart Request Quote

1 - 6 of 6 | Results Per Page | View | Unit of Measure
