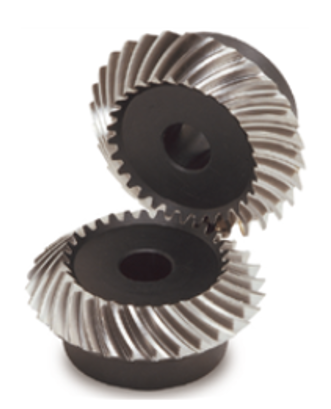

Ground Spiral Miter Gears (SMSG) On KHK Gears

KHK USA Metric Gears

Reasonably priced ground gear, yet remachinable except for the gear teeth.

1 - 25 of 332 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

Shape

Bore (A) (in)

Bore (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

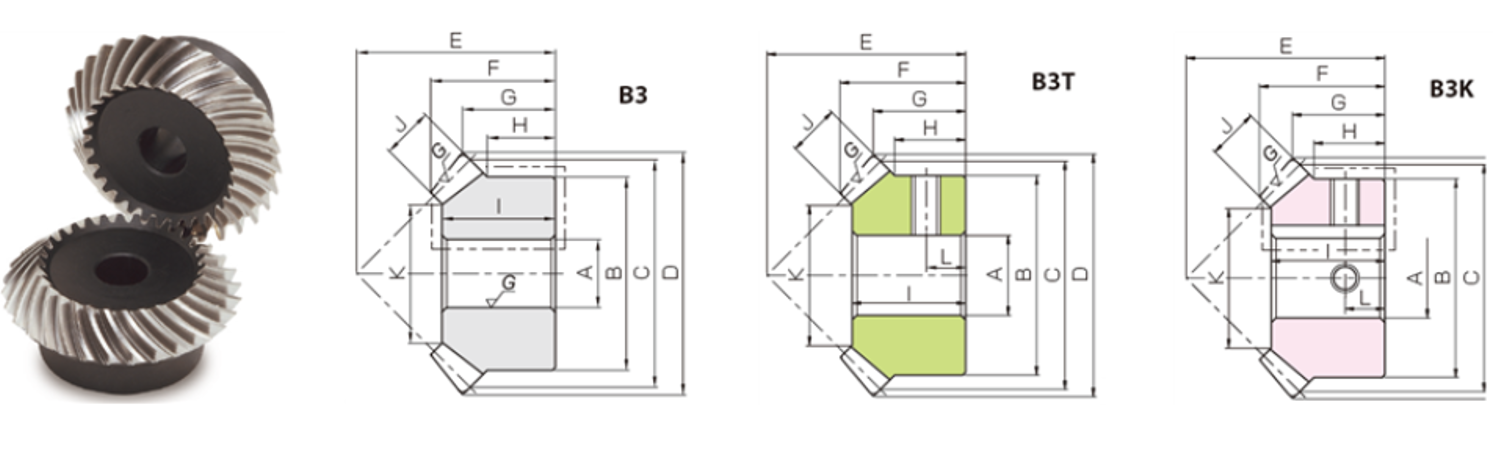

Item #	List Price	Module	No. of Teeth	Shape	Bore (A)	Pitch Diameter (C)	Outer Diameter (D)	CAD	Add To Cart/Request Quote

SMSG1.5-20L	QUOTE	N/A 1.5	N/A 20	N/A B3	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.250 in31.74 mm	N/A	Add To Cart Request Quote
SMSG1.5-20LJ10	QUOTE	N/A 1.5	N/A 20	N/A B3K	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.250 in31.74 mm	N/A	Add To Cart Request Quote
SMSG1.5-20LJ8	QUOTE	N/A 1.5	N/A 20	N/A B3T	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.250 in31.74 mm	N/A	Add To Cart Request Quote
SMSG1.5-20R	QUOTE	N/A 1.5	N/A 20	N/A B3	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.250 in31.74 mm	N/A	Add To Cart Request Quote
SMSG1.5-20RJ10	QUOTE	N/A 1.5	N/A 20	N/A B3K	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.250 in31.74 mm	N/A	Add To Cart Request Quote
SMSG1.5-20RJ8	QUOTE	N/A 1.5	N/A 20	N/A B3T	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.250 in31.74 mm	N/A	Add To Cart Request Quote
SMSG1.5-25L	QUOTE	N/A 1.5	N/A 25	N/A B3	N/A 0.394 in10 mm	N/A 1.476 in37.5 mm	N/A 1.548 in39.31 mm	N/A	Add To Cart Request Quote
SMSG1.5-25LJ10	QUOTE	N/A 1.5	N/A 25	N/A B3K	N/A 0.394 in10 mm	N/A 1.476 in37.5 mm	N/A 1.548 in39.31 mm	N/A	Add To Cart Request Quote
SMSG1.5-25LJ12	QUOTE	N/A 1.5	N/A 25	N/A B3K	N/A 0.472 in12 mm	N/A 1.476 in37.5 mm	N/A 1.548 in39.31 mm	N/A	Add To Cart Request Quote
SMSG1.5-25LJ14	QUOTE	N/A 1.5	N/A 25	N/A B3K	N/A 0.551 in14 mm	N/A 1.476 in37.5 mm	N/A 1.548 in39.31 mm	N/A	Add To Cart Request Quote
SMSG1.5-25R	QUOTE	N/A 1.5	N/A 25	N/A B3	N/A 0.394 in10 mm	N/A 1.476 in37.5 mm	N/A 1.548 in39.31 mm	N/A	Add To Cart Request Quote
SMSG1.5-25RJ10	QUOTE	N/A 1.5	N/A 25	N/A B3K	N/A 0.394 in10 mm	N/A 1.476 in37.5 mm	N/A 1.548 in39.31 mm	N/A	Add To Cart Request Quote
SMSG1.5-25RJ12	QUOTE	N/A 1.5	N/A 25	N/A B3K	N/A 0.472 in12 mm	N/A 1.476 in37.5 mm	N/A 1.548 in39.31 mm	N/A	Add To Cart Request Quote
SMSG1.5-25RJ14	QUOTE	N/A 1.5	N/A 25	N/A B3K	N/A 0.551 in14 mm	N/A 1.476 in37.5 mm	N/A 1.548 in39.31 mm	N/A	Add To Cart Request Quote
SMSG1.5-30L	QUOTE	N/A 1.5	N/A 30	N/A B3	N/A 0.394 in10 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30LJ10	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.394 in10 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30LJ12	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.472 in12 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30LJ14	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.551 in14 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30LJ15	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.591 in15 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30LJ16	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.630 in16 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30LJ17	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.669 in17 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30LJ18	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.709 in18 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30LJ19	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.748 in19 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30R	QUOTE	N/A 1.5	N/A 30	N/A B3	N/A 0.394 in10 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
SMSG1.5-30RJ10	QUOTE	N/A 1.5	N/A 30	N/A B3K	N/A 0.394 in10 mm	N/A 1.772 in45 mm	N/A 1.844 in46.84 mm	N/A	Add To Cart Request Quote
