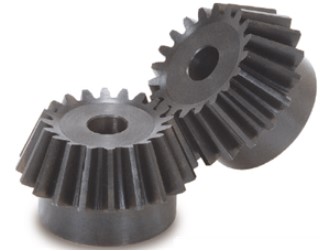

Angular Miter Gears (SAM)
Miter Gears
3 types are available for shafts at 45°, 60° and 120°.
Item # |
List Price |
No. of Teeth |
Module |
Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| SAM1.5-20045 SAM1.5-20045/Asset/Angular-Miter-Gears--SAM----B45.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 1.5 | Shape N/A B45 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.290 in32.77 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM1.5-20060 SAM1.5-20060/Asset/Angular-Miter-Gears--SAM----B60.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 1.5 | Shape N/A B60 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.283 in32.59 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM1.5-20120 SAM1.5-20120/Asset/Angular-Miter-Gears--SAM----B120.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 1.5 | Shape N/A B120 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.240 in31.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM2.5-20045 SAM2.5-20045/Asset/Angular-Miter-Gears--SAM----B45.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 2.5 | Shape N/A B45 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.150 in54.62 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM2.5-20060 SAM2.5-20060/Asset/Angular-Miter-Gears--SAM----B60.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 2.5 | Shape N/A B60 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.139 in54.33 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM2.5-20120 SAM2.5-20120/Asset/Angular-Miter-Gears--SAM----B120.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 2.5 | Shape N/A B120 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.067 in52.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM2-20045 SAM2-20045/Asset/Angular-Miter-Gears--SAM----B45.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 2 | Shape N/A B45 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.720 in43.69 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM2-20060 SAM2-20060/Asset/Angular-Miter-Gears--SAM----B60.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 2 | Shape N/A B60 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.711 in43.46 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM2-20120 SAM2-20120/Asset/Angular-Miter-Gears--SAM----B120.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 2 | Shape N/A B120 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.654 in42 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM3-20045 SAM3-20045/Asset/Angular-Miter-Gears--SAM----B45.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 3 | Shape N/A B45 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.580 in65.54 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM3-20060 SAM3-20060/Asset/Angular-Miter-Gears--SAM----B60.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 3 | Shape N/A B60 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.567 in65.19 mm | CAD N/A |
Add To Cart
Request Quote |
| SAM3-20120 SAM3-20120/Asset/Angular-Miter-Gears--SAM----B120.jpg | QUOTE | No. of Teeth N/A 20 | Module N/A 3 | Shape N/A B120 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.480 in63 mm | CAD N/A |
