3 types are available for shafts at 45°, 60° and 120°.
Unit of Measure
Specifications
Gear Type |
N/A Miter Gears |
Construction |
N/A Angular Miter Gears |
Bore Type |
N/A Plain |
Gear Ratio |
N/A 1 |
No. of Teeth |
N/A 20 |
Module |
N/A 1.5 |
Shape |
N/A B120 |
Precision Grade |
N/A JIS B 1704:1978 grade 3 |
Gear Teeth Type |
N/A Gleason |
Bending Strength |
N/A 2.43 N·m0.25 kgf·m |
Surface Durability |
N/A 0.29 N·m0.03 kgf·m |
Backlash |
N/A 0.002-0.0059 in0.05-0.15 mm |
Material |
N/A S45C (AISI 1045) Carbon Steel |
Tooth Hardness |
N/A (less than 194HB) |
Surface Treatment |
N/A Black oxide coating |
Weight |
N/A 0.073 kg0.161 lb |

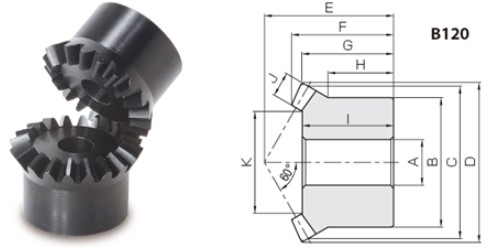

Dimensions
Bore (A) |
N/A 0.315 in8 mm |
Hub Diameter (B) |
N/A 1.024 in26 mm |
Pitch Diameter (C) |
N/A 1.181 in30 mm |
Outer Diameter (D) |
N/A 1.240 in31.5 mm |
Mounting Distance (E) |
N/A 1.024 in26 mm |
Total Length (F) |
N/A 0.815 in20.69 mm |
Hub Width (H) |
N/A 0.546 in13.88 mm |
Length Of Bore (I) |
N/A 0.709 in18 mm |
Face Width (J) |
N/A 0.315 in5 mm |
Holding Surface Diameter (K) |
N/A 0.757 in19.22 mm |
Length from Crown to Back |
N/A 0.734 in18.64 mm |
Pressure Angle |
N/A 20 º |
