Stainless Steel Worms (SUW)
Worm Gears
Rust-resistant worms made of stainless steel suitable for mating with DS or PG worm wheels. Finished products for the J Series are also available.
1 2
Clear
Filter
Number of Start
Module

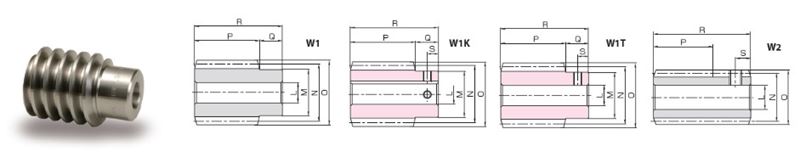

Shape
Bore (A) (in)
Bore (A) (mm)
Pitch Diameter (N) (in)
Pitch Diameter (N) (mm)
Item # |
List Price |
Number of Start |
Module |
Shape |
Bore (A) |
Pitch Diameter (N) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| SUW0.5-R1 SUW0.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 0.5 | Shape N/A W2 | Bore (A) N/A 0.197 in5 mm | Pitch Diameter (N) N/A 0.433 in11 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW0.5-R2 SUW0.5-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 0.5 | Shape N/A W2 | Bore (A) N/A 0.197 in5 mm | Pitch Diameter (N) N/A 0.433 in11 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW0.8-R1 SUW0.8-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 0.8 | Shape N/A W2 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (N) N/A 0.551 in14 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW0.8-R2 SUW0.8-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 0.8 | Shape N/A W2 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (N) N/A 0.551 in14 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW1.5-R1 SUW1.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 1.5 | Shape N/A W1 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (N) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW1.5-R1J10 SUW1.5-R1J10/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 1.5 | Shape N/A W1K | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (N) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW1.5-R1J8 SUW1.5-R1J8/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 1.5 | Shape N/A W1T | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (N) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW1.5-R2 SUW1.5-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 1.5 | Shape N/A W1 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (N) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW1.5-R2J10 SUW1.5-R2J10/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 1.5 | Shape N/A W1K | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (N) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW1.5-R2J8 SUW1.5-R2J8/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 1.5 | Shape N/A W1T | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (N) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW1-R1 SUW1-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 1 | Shape N/A W2 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (N) N/A 0.630 in16 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW1-R2 SUW1-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 1 | Shape N/A W2 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (N) N/A 0.630 in16 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2.5-R1 SUW2.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 2.5 | Shape N/A W1 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2.5-R1J15 SUW2.5-R1J15/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 2.5 | Shape N/A W1K | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2.5-R1J16 SUW2.5-R1J16/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 2.5 | Shape N/A W1K | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2.5-R1J17 SUW2.5-R1J17/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 2.5 | Shape N/A W1K | Bore (A) N/A 0.669 in17 mm | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2.5-R2 SUW2.5-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 2.5 | Shape N/A W1 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2.5-R2J15 SUW2.5-R2J15/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 2.5 | Shape N/A W1K | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2.5-R2J16 SUW2.5-R2J16/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 2.5 | Shape N/A W1K | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2.5-R2J17 SUW2.5-R2J17/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 2.5 | Shape N/A W1K | Bore (A) N/A 0.669 in17 mm | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2-R1 SUW2-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 2 | Shape N/A W1 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (N) N/A 1.220 in31 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2-R1J12 SUW2-R1J12/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 2 | Shape N/A W1K | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (N) N/A 1.220 in31 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2-R1J14 SUW2-R1J14/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 1 | Module N/A 2 | Shape N/A W1K | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (N) N/A 1.220 in31 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2-R2 SUW2-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 2 | Shape N/A W1 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (N) N/A 1.220 in31 mm | CAD N/A |
Add To Cart
Request Quote |
| SUW2-R2J12 SUW2-R2J12/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Number of Start N/A 2 | Module N/A 2 | Shape N/A W1K | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (N) N/A 1.220 in31 mm | CAD N/A |
Add To Cart
Request Quote |
1 2
