Ground Worm Shafts (KWG)
Worm Gears

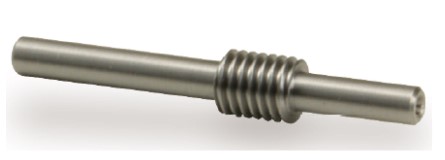

Grounded finished worms with a shaft, including tooth surface quenching treatment. Allows compact design due to having small reference diameters.
Item # |
List Price |
Nominal Axial Module |
Number of Start |
Nominal Lead Angle |
Shape |

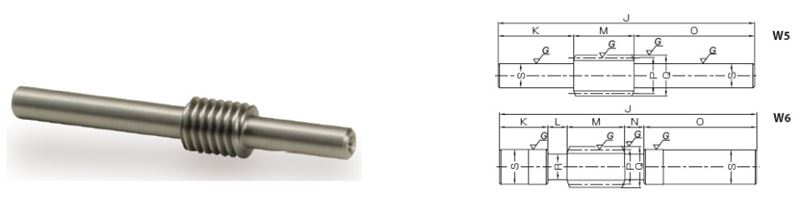

Pitch Diameter (P) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| KWG0.5-R1 KWG0.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 0.5 | Number of Start N/A 1 | Nominal Lead Angle N/A 3°11' | Shape N/A W5 | Pitch Diameter (P) N/A 0.354 in9 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG0.5-R2 KWG0.5-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 0.5 | Number of Start N/A 2 | Nominal Lead Angle N/A 6°20' | Shape N/A W5 | Pitch Diameter (P) N/A 0.354 in9 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG0.8-R1 KWG0.8-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 0.8 | Number of Start N/A 1 | Nominal Lead Angle N/A 3°49' | Shape N/A W5 | Pitch Diameter (P) N/A 0.472 in12 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG0.8-R2 KWG0.8-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 0.8 | Number of Start N/A 2 | Nominal Lead Angle N/A 7°36' | Shape N/A W5 | Pitch Diameter (P) N/A 0.472 in12 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG1.5-R1 KWG1.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1.5 | Number of Start N/A 1 | Nominal Lead Angle N/A 3°26' | Shape N/A W6 | Pitch Diameter (P) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG1.5-R2 KWG1.5-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1.5 | Number of Start N/A 2 | Nominal Lead Angle N/A 6°51' | Shape N/A W6 | Pitch Diameter (P) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG1-R1 KWG1-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1 | Number of Start N/A 1 | Nominal Lead Angle N/A 3°35' | Shape N/A W6 | Pitch Diameter (P) N/A 0.630 in16 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG1-R2 KWG1-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1 | Number of Start N/A 2 | Nominal Lead Angle N/A 7°08' | Shape N/A W6 | Pitch Diameter (P) N/A 0.630 in16 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG2.5-R1 KWG2.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2.5 | Number of Start N/A 1 | Nominal Lead Angle N/A 4°46' | Shape N/A W6 | Pitch Diameter (P) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG2.5-R2 KWG2.5-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2.5 | Number of Start N/A 2 | Nominal Lead Angle N/A 9°28' | Shape N/A W6 | Pitch Diameter (P) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG2-R1 KWG2-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2 | Number of Start N/A 1 | Nominal Lead Angle N/A 5°12' | Shape N/A W6 | Pitch Diameter (P) N/A 0.866 in22 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG2-R2 KWG2-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2 | Number of Start N/A 2 | Nominal Lead Angle N/A 10°18' | Shape N/A W6 | Pitch Diameter (P) N/A 0.866 in22 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG3-R1 KWG3-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3 | Number of Start N/A 1 | Nominal Lead Angle N/A 4°31' | Shape N/A W6 | Pitch Diameter (P) N/A 1.496 in38 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG3-R2 KWG3-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3 | Number of Start N/A 2 | Nominal Lead Angle N/A 8°58' | Shape N/A W6 | Pitch Diameter (P) N/A 1.496 in38 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG4-R1 KWG4-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 4 | Number of Start N/A 1 | Nominal Lead Angle N/A 5°43' | Shape N/A W6 | Pitch Diameter (P) N/A 1.575 in40 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG4-R2 KWG4-R2/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 4 | Number of Start N/A 2 | Nominal Lead Angle N/A 11°19' | Shape N/A W6 | Pitch Diameter (P) N/A 1.575 in40 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG5-R1 KWG5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 5 | Number of Start N/A 1 | Nominal Lead Angle N/A 5°43' | Shape N/A W6 | Pitch Diameter (P) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| KWG6-R1 KWG6-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 6 | Number of Start N/A 1 | Nominal Lead Angle N/A 5°43' | Shape N/A W6 | Pitch Diameter (P) N/A 2.362 in60 mm | CAD N/A |
Add To Cart
Request Quote |
