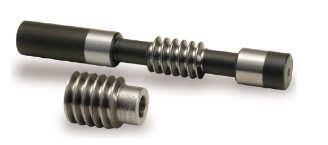

Duplex Worms (KWGDL - KWGDLS)
Worm Gears
High-precision duplex worms with superior strength. A range of backlash values can be obtained by moving the worm axially.
Item # |
List Price |
Bore Type |
Nominal Axial Module |
Hand of Thread |

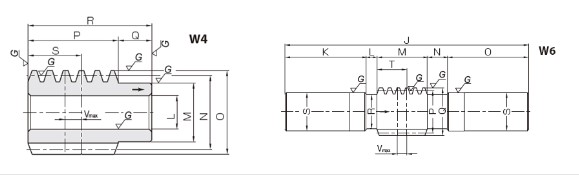

Shape |
Pitch Diameter (N) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| KWGDL2.5-R1 KWGDL2.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Nominal Axial Module N/A 2.5 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDL2-R1 KWGDL2-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Nominal Axial Module N/A 2 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 1.220 in31 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDL3.5-R1 KWGDL3.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Nominal Axial Module N/A 3.5 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 2.087 in53 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDL3-R1 KWGDL3-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Nominal Axial Module N/A 3 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 1.732 in44 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDL4-R1 KWGDL4-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Nominal Axial Module N/A 4 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 2.441 in62 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDLS1.5-R1 KWGDLS1.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A | Nominal Axial Module N/A 1.5 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDLS2.5-R1 KWGDLS2.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A | Nominal Axial Module N/A 2.5 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 1.457 in37 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDLS2-R1 KWGDLS2-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A | Nominal Axial Module N/A 2 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 1.220 in31 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDLS3.5-R1 KWGDLS3.5-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A | Nominal Axial Module N/A 3.5 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 2.087 in53 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDLS3-R1 KWGDLS3-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A | Nominal Axial Module N/A 3 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 1.732 in44 mm | CAD N/A |
Add To Cart
Request Quote |
| KWGDLS4-R1 KWGDLS4-R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A | Nominal Axial Module N/A 4 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 2.441 in62 mm | CAD N/A |
Add To Cart
Request Quote |
