Duplex Worm Wheels (AGDL)
Worm Gears
Duplex worm wheels made of aluminum bronze, excellent in wear-resistance. The pitch accuracy is first grade.
Clear
Filter
Nominal Axial Module
Reduction Ratio
No. of teeth

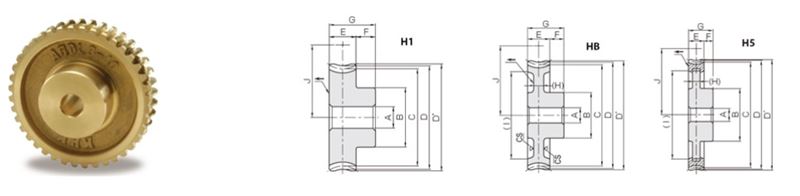

Shape
Pitch Diameter (C) (in)
Pitch Diameter (C) (mm)
Item # |
List Price |
Nominal Axial Module |
Reduction Ratio |
No. of teeth |
Shape |
Pitch Diameter (C) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| AGDL1.5-20R1 AGDL1.5-20R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1.5 | Reduction Ratio N/A 20 | No. of teeth N/A 20 | Shape N/A H1 | Pitch Diameter (C) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL1.5-30R1 AGDL1.5-30R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1.5 | Reduction Ratio N/A 30 | No. of teeth N/A 30 | Shape N/A H1 | Pitch Diameter (C) N/A 1.772 in45 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL1.5-36R1 AGDL1.5-36R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1.5 | Reduction Ratio N/A 36 | No. of teeth N/A 36 | Shape N/A H1 | Pitch Diameter (C) N/A 2.126 in54 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL1.5-40R1 AGDL1.5-40R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1.5 | Reduction Ratio N/A 40 | No. of teeth N/A 40 | Shape N/A H1 | Pitch Diameter (C) N/A 2.362 in60 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL1.5-50R1 AGDL1.5-50R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1.5 | Reduction Ratio N/A 50 | No. of teeth N/A 50 | Shape N/A H1 | Pitch Diameter (C) N/A 2.953 in75 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL1.5-60R1 AGDL1.5-60R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 1.5 | Reduction Ratio N/A 60 | No. of teeth N/A 60 | Shape N/A H1 | Pitch Diameter (C) N/A 3.543 in90 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2.5-20R1 AGDL2.5-20R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2.5 | Reduction Ratio N/A 20 | No. of teeth N/A 20 | Shape N/A H1 | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2.5-30R1 AGDL2.5-30R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2.5 | Reduction Ratio N/A 30 | No. of teeth N/A 30 | Shape N/A H1 | Pitch Diameter (C) N/A 2.953 in75 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2.5-36R1 AGDL2.5-36R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2.5 | Reduction Ratio N/A 36 | No. of teeth N/A 36 | Shape N/A H1 | Pitch Diameter (C) N/A 3.543 in90 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2.5-40R1 AGDL2.5-40R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2.5 | Reduction Ratio N/A 40 | No. of teeth N/A 40 | Shape N/A HB | Pitch Diameter (C) N/A 3.937 in100 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2.5-50R1 AGDL2.5-50R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2.5 | Reduction Ratio N/A 50 | No. of teeth N/A 50 | Shape N/A HB | Pitch Diameter (C) N/A 4.921 in125 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2.5-60R1 AGDL2.5-60R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2.5 | Reduction Ratio N/A 60 | No. of teeth N/A 60 | Shape N/A HB | Pitch Diameter (C) N/A 5.906 in150 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2-20R1 AGDL2-20R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2 | Reduction Ratio N/A 20 | No. of teeth N/A 20 | Shape N/A H1 | Pitch Diameter (C) N/A 1.575 in40 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2-30R1 AGDL2-30R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2 | Reduction Ratio N/A 30 | No. of teeth N/A 30 | Shape N/A H1 | Pitch Diameter (C) N/A 2.362 in60 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2-36R1 AGDL2-36R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2 | Reduction Ratio N/A 36 | No. of teeth N/A 36 | Shape N/A H1 | Pitch Diameter (C) N/A 2.835 in72 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2-40R1 AGDL2-40R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2 | Reduction Ratio N/A 40 | No. of teeth N/A 40 | Shape N/A H1 | Pitch Diameter (C) N/A 3.150 in80 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2-50R1 AGDL2-50R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2 | Reduction Ratio N/A 50 | No. of teeth N/A 50 | Shape N/A H1 | Pitch Diameter (C) N/A 3.937 in100 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL2-60R1 AGDL2-60R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 2 | Reduction Ratio N/A 60 | No. of teeth N/A 60 | Shape N/A H1 | Pitch Diameter (C) N/A 4.724 in120 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL3.5-20R1 AGDL3.5-20R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3.5 | Reduction Ratio N/A 20 | No. of teeth N/A 20 | Shape N/A H1 | Pitch Diameter (C) N/A 2.756 in70 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL3.5-30R1 AGDL3.5-30R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3.5 | Reduction Ratio N/A 30 | No. of teeth N/A 30 | Shape N/A H1 | Pitch Diameter (C) N/A 4.134 in105 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL3.5-36R1 AGDL3.5-36R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3.5 | Reduction Ratio N/A 36 | No. of teeth N/A 36 | Shape N/A H1 | Pitch Diameter (C) N/A 4.961 in126 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL3.5-40R1 AGDL3.5-40R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3.5 | Reduction Ratio N/A 40 | No. of teeth N/A 40 | Shape N/A HB | Pitch Diameter (C) N/A 5.512 in140 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL3.5-50R1 AGDL3.5-50R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3.5 | Reduction Ratio N/A 50 | No. of teeth N/A 50 | Shape N/A HB | Pitch Diameter (C) N/A 6.890 in175 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL3.5-60R1 AGDL3.5-60R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3.5 | Reduction Ratio N/A 60 | No. of teeth N/A 60 | Shape N/A HB | Pitch Diameter (C) N/A 8.268 in210 mm | CAD N/A |
Add To Cart
Request Quote |
| AGDL3-20R1 AGDL3-20R1/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Nominal Axial Module N/A 3 | Reduction Ratio N/A 20 | No. of teeth N/A 20 | Shape N/A H1 | Pitch Diameter (C) N/A 2.362 in60 mm | CAD N/A |
Add To Cart
Request Quote |
