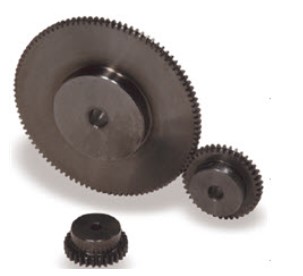

Thin Face Spur Gears (SSY) On KHK Gears

The SSY Spur Gears are made from carbon steel and are NOT hardened. These Spur Gears are designed with a narrower face width than the SS Series Spur Gears. These Spur Gears are suitable for light-duty applications. These Spur Gears are easily customizable.

1 - 25 of 83 | Results Per Page | View | Unit of Measure

1 2 3 4

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

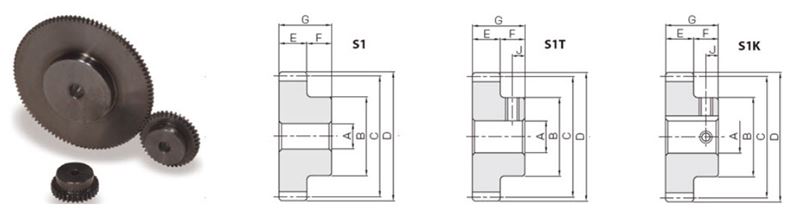

Item #	List Price	Bore Type	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

SSY0.8-20	QUOTE	N/A Plain	N/A 0.8	N/A 20	N/A S1	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.693 in17.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-20A	QUOTE	N/A Finished	N/A 0.8	N/A 20	N/A S1T	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.693 in17.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-25	QUOTE	N/A Plain	N/A 0.8	N/A 25	N/A S1	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.850 in21.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-25A	QUOTE	N/A Finished	N/A 0.8	N/A 25	N/A S1T	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.850 in21.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-30	QUOTE	N/A Plain	N/A 0.8	N/A 30	N/A S1	N/A 0.197 in5 mm	N/A 0.945 in24 mm	N/A 1.008 in25.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-30A	QUOTE	N/A Finished	N/A 0.8	N/A 30	N/A S1T	N/A 0.197 in5 mm	N/A 0.945 in24 mm	N/A 1.008 in25.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-40	QUOTE	N/A Plain	N/A 0.8	N/A 40	N/A S1	N/A 0.197 in5 mm	N/A 1.260 in32 mm	N/A 1.323 in33.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-40A	QUOTE	N/A Finished	N/A 0.8	N/A 40	N/A S1T	N/A 0.236 in6 mm	N/A 1.260 in32 mm	N/A 1.323 in33.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-50	QUOTE	N/A Plain	N/A 0.8	N/A 50	N/A S1	N/A 0.197 in5 mm	N/A 1.575 in40 mm	N/A 1.638 in41.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY0.8-50A	QUOTE	N/A Finished	N/A 0.8	N/A 50	N/A S1T	N/A 0.236 in6 mm	N/A 1.575 in40 mm	N/A 1.638 in41.6 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSY1-12	QUOTE	N/A Plain	N/A 1	N/A 12	N/A S1	N/A 0.197 in5 mm	N/A 0.472 in12 mm	N/A 0.551 in14 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-12A	QUOTE	N/A Finished	N/A 1	N/A 12	N/A S1T	N/A 0.197 in5 mm	N/A 0.472 in12 mm	N/A 0.551 in14 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-14	QUOTE	N/A Plain	N/A 1	N/A 14	N/A S1	N/A 0.197 in5 mm	N/A 0.551 in14 mm	N/A 0.630 in16 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-14A	QUOTE	N/A Finished	N/A 1	N/A 14	N/A S1T	N/A 0.197 in5 mm	N/A 0.551 in14 mm	N/A 0.630 in16 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-15	QUOTE	N/A Plain	N/A 1	N/A 15	N/A S1	N/A 0.236 in6 mm	N/A 0.591 in15 mm	N/A 0.669 in17 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-15A	QUOTE	N/A Finished	N/A 1	N/A 15	N/A S1T	N/A 0.236 in6 mm	N/A 0.591 in15 mm	N/A 0.669 in17 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-16	QUOTE	N/A Plain	N/A 1	N/A 16	N/A S1	N/A 0.236 in6 mm	N/A 0.630 in16 mm	N/A 0.709 in18 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-16A	QUOTE	N/A Finished	N/A 1	N/A 16	N/A S1T	N/A 0.236 in6 mm	N/A 0.630 in16 mm	N/A 0.709 in18 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-18	QUOTE	N/A Plain	N/A 1	N/A 18	N/A S1	N/A 0.236 in6 mm	N/A 0.709 in18 mm	N/A 0.787 in20 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-18A	QUOTE	N/A Finished	N/A 1	N/A 18	N/A S1T	N/A 0.236 in6 mm	N/A 0.709 in18 mm	N/A 0.787 in20 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-20	QUOTE	N/A Plain	N/A 1	N/A 20	N/A S1	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-20A	QUOTE	N/A Finished	N/A 1	N/A 20	N/A S1T	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-20B	QUOTE	N/A Finished	N/A 1	N/A 20	N/A S1T	N/A 0.315 in8 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-24	QUOTE	N/A Plain	N/A 1	N/A 24	N/A S1	N/A 0.236 in6 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
SSY1-24A	QUOTE	N/A Finished	N/A 1	N/A 24	N/A S1T	N/A 0.236 in6 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
