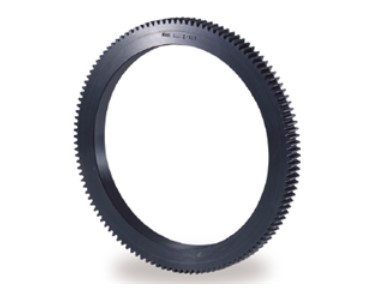

Steel Ring Gears (Spur Gears) (SSR) On KHK Gears

KHK USA Metric Gears

Allows large gear ratios. Can also be used as segment gears and corner racks.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

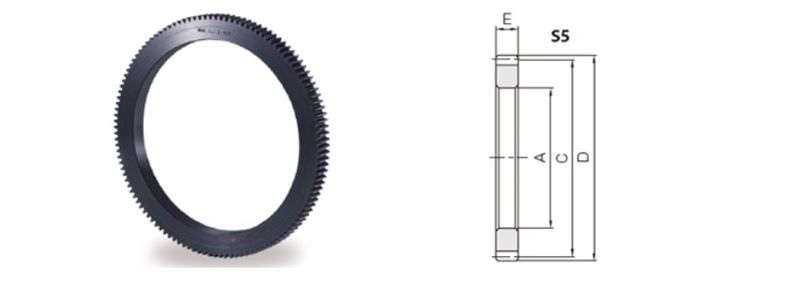

Item #	List Price	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Face Width (E)	CAD	Add To Cart/Request Quote

SSR2-120	QUOTE	N/A 2	N/A 120	N/A S5	N/A 7.638 in194 mm	N/A 9.449 in240 mm	N/A 9.606 in244 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSR2-200	QUOTE	N/A 2	N/A 200	N/A S5	N/A 13.937 in354 mm	N/A 15.748 in400 mm	N/A 15.906 in404 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SSR2.5-120	QUOTE	N/A 2.5	N/A 120	N/A S5	N/A 9.646 in245 mm	N/A 11.811 in300 mm	N/A 12.008 in305 mm	N/A 0.984 in25 mm	N/A	Add To Cart Request Quote
SSR2.5-200	QUOTE	N/A 2.5	N/A 200	N/A S5	N/A 17.520 in445 mm	N/A 19.685 in500 mm	N/A 19.882 in505 mm	N/A 0.984 in25 mm	N/A	Add To Cart Request Quote
SSR3-120	QUOTE	N/A 3	N/A 120	N/A S5	N/A 11.654 in296 mm	N/A 14.173 in360 mm	N/A 14.409 in366 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SSR3-160	QUOTE	N/A 3	N/A 160	N/A S5	N/A 16.378 in416 mm	N/A 18.898 in480 mm	N/A 19.134 in486 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
