Stainless Steel Spur Gears (SUS - SUSA) On KHK Gears

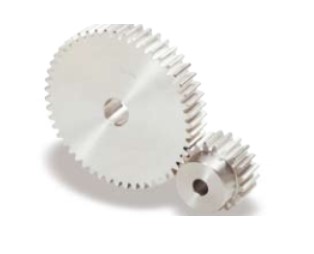

The SUS Spur Gears and the SUSA Hubless Spur gears are made from 303 stainless steel gears. These gears are suitable for food applications and washdown environments. J Series configurations of the SUS Spur Gears are available.

1 - 25 of 1203 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Face Width (E) (in)

Face Width (E) (mm)

Item #	List Price	Bore Type	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Face Width (E)	CAD	Add To Cart/Request Quote

SUS1-15	QUOTE	N/A Plain	N/A 1	N/A 15	N/A S3	N/A 0.315 in8 mm	N/A 0.591 in15 mm	N/A 0.669 in17 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-15J8	QUOTE	N/A Finished	N/A 1	N/A 15	N/A S3T	N/A 0.315 in8 mm	N/A 0.591 in15 mm	N/A 0.669 in17 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-16	QUOTE	N/A Plain	N/A 1	N/A 16	N/A S3	N/A 0.315 in8 mm	N/A 0.630 in16 mm	N/A 0.709 in18 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-16J8	QUOTE	N/A Finished	N/A 1	N/A 16	N/A S3T	N/A 0.315 in8 mm	N/A 0.630 in16 mm	N/A 0.709 in18 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-18	QUOTE	N/A Plain	N/A 1	N/A 18	N/A S3	N/A 0.315 in8 mm	N/A 0.709 in18 mm	N/A 0.787 in20 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-18J8	QUOTE	N/A Finished	N/A 1	N/A 18	N/A S3T	N/A 0.315 in8 mm	N/A 0.709 in18 mm	N/A 0.787 in20 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-20	QUOTE	N/A Plain	N/A 1	N/A 20	N/A S1	N/A 0.315 in8 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-20J8	QUOTE	N/A Finished	N/A 1	N/A 20	N/A S1T	N/A 0.315 in8 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-22	QUOTE	N/A Plain	N/A 1	N/A 22	N/A S1	N/A 0.315 in8 mm	N/A 0.866 in22 mm	N/A 0.945 in24 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-22J8	QUOTE	N/A Finished	N/A 1	N/A 22	N/A S1T	N/A 0.315 in8 mm	N/A 0.866 in22 mm	N/A 0.945 in24 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-24	QUOTE	N/A Plain	N/A 1	N/A 24	N/A S1	N/A 0.315 in8 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-24J8	QUOTE	N/A Finished	N/A 1	N/A 24	N/A S1T	N/A 0.315 in8 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-25	QUOTE	N/A Plain	N/A 1	N/A 25	N/A S1	N/A 0.315 in8 mm	N/A 0.984 in25 mm	N/A 1.063 in27 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-25J8	QUOTE	N/A Finished	N/A 1	N/A 25	N/A S1T	N/A 0.315 in8 mm	N/A 0.984 in25 mm	N/A 1.063 in27 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-28	QUOTE	N/A Plain	N/A 1	N/A 28	N/A S1	N/A 0.315 in8 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-28J10	QUOTE	N/A Finished	N/A 1	N/A 28	N/A S1K	N/A 0.394 in10 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-28J12	QUOTE	N/A Finished	N/A 1	N/A 28	N/A S1K	N/A 0.472 in12 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-28J8	QUOTE	N/A Finished	N/A 1	N/A 28	N/A S1T	N/A 0.315 in8 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-30	QUOTE	N/A Plain	N/A 1	N/A 30	N/A S1	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-30J10	QUOTE	N/A Finished	N/A 1	N/A 30	N/A S1K	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-30J12	QUOTE	N/A Finished	N/A 1	N/A 30	N/A S1K	N/A 0.472 in12 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-30J8	QUOTE	N/A Finished	N/A 1	N/A 30	N/A S1T	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-32	QUOTE	N/A Plain	N/A 1	N/A 32	N/A S1	N/A 0.315 in8 mm	N/A 1.260 in32 mm	N/A 1.339 in34 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-32J10	QUOTE	N/A Finished	N/A 1	N/A 32	N/A S1K	N/A 0.394 in10 mm	N/A 1.260 in32 mm	N/A 1.339 in34 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote
SUS1-32J12	QUOTE	N/A Finished	N/A 1	N/A 32	N/A S1K	N/A 0.472 in12 mm	N/A 1.260 in32 mm	N/A 1.339 in34 mm	N/A 0.394 in10 mm	N/A	Add To Cart Request Quote

1 - 25 of 1203 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »
