Stainless Steel Hubs for PSA Plastic Spur Gears (SUKB) On KHK Gears

KHK USA Metric Gears

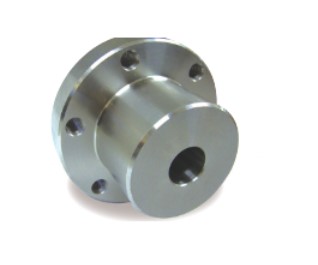

This is an attached stainless steel hub with excellent rust resistance.

1 - 9 of 9 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

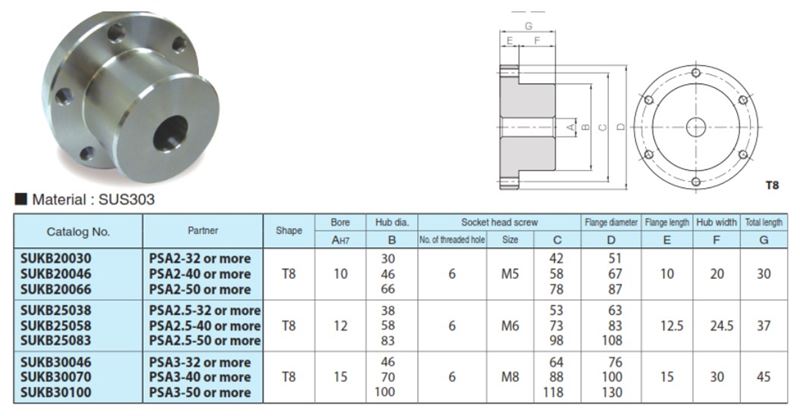

Item #	List Price	Bore Diameter (A)	Hub Diameter (B)	Flange Diameter (D)	Hub Width (F)	Total Length (G)	CAD	Add To Cart/Request Quote

SUKB20030	QUOTE	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 2.008 in51 mm	N/A 0.787 in20 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SUKB20046	QUOTE	N/A 0.394 in10 mm	N/A 1.811 in46 mm	N/A 2.638 in67 mm	N/A 0.787 in20 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SUKB20066	QUOTE	N/A 0.394 in10 mm	N/A 2.598 in66 mm	N/A 3.425 in87 mm	N/A 0.787 in20 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SUKB25038	QUOTE	N/A 0.472 in12 mm	N/A 1.496 in38 mm	N/A 2.480 in63 mm	N/A 0.965 in24.5 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SUKB25058	QUOTE	N/A 0.472 in12 mm	N/A 2.283 in58 mm	N/A 3.268 in83 mm	N/A 0.965 in24.5 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SUKB25083	QUOTE	N/A 0.472 in12 mm	N/A 3.268 in83 mm	N/A 4.252 in108 mm	N/A 0.965 in24.5 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SUKB30046	QUOTE	N/A 0.591 in15 mm	N/A 1.811 in46 mm	N/A 2.992 in76 mm	N/A 1.181 in30 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
SUKB30070	QUOTE	N/A 0.591 in15 mm	N/A 2.756 in70 mm	N/A 3.937 in100 mm	N/A 1.181 in30 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
SUKB30100	QUOTE	N/A 0.591 in15 mm	N/A 3.937 in100 mm	N/A 5.118 in130 mm	N/A 1.181 in30 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
