Stainless Steel F-Loc Hub Spur Gears (SUSF) On KHK Gears

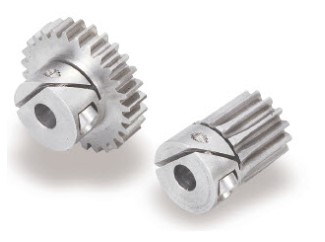

These fine pitch, stainless steel spur gears have an integral hub locking mechanism which enables the gear to be fastened to the shaft without any keys or set screws.

1 - 25 of 43 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

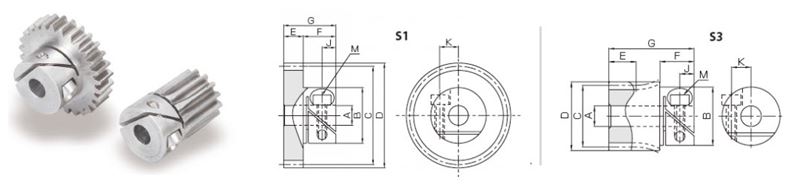

Item #	List Price	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

SUSF0.5-16	QUOTE	N/A 0.5	N/A 16	N/A S3	N/A 0.157 in4 mm	N/A 0.315 in8 mm	N/A 0.354 in9 mm	N/A 0.866 in22 mm	N/A	Add To Cart Request Quote
SUSF0.5-18	QUOTE	N/A 0.5	N/A 18	N/A S3	N/A 0.157 in4 mm	N/A 0.354 in9 mm	N/A 0.394 in10 mm	N/A 0.866 in22 mm	N/A	Add To Cart Request Quote
SUSF0.5-20	QUOTE	N/A 0.5	N/A 20	N/A S3	N/A 0.157 in4 mm	N/A 0.394 in10 mm	N/A 0.433 in11 mm	N/A 0.866 in22 mm	N/A	Add To Cart Request Quote
SUSF0.5-24	QUOTE	N/A 0.5	N/A 24	N/A S3	N/A 0.197 in5 mm	N/A 0.472 in12 mm	N/A 0.512 in13 mm	N/A 0.866 in22 mm	N/A	Add To Cart Request Quote
SUSF0.5-25	QUOTE	N/A 0.5	N/A 25	N/A S3	N/A 0.197 in5 mm	N/A 0.492 in12.5 mm	N/A 0.531 in13.5 mm	N/A 0.866 in22 mm	N/A	Add To Cart Request Quote
SUSF0.5-28	QUOTE	N/A 0.5	N/A 28	N/A S1	N/A 0.197 in5 mm	N/A 0.551 in14 mm	N/A 0.591 in15 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-30	QUOTE	N/A 0.5	N/A 30	N/A S1	N/A 0.197 in5 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-32	QUOTE	N/A 0.5	N/A 32	N/A S1	N/A 0.236 in6 mm	N/A 0.630 in16 mm	N/A 0.669 in17 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-35	QUOTE	N/A 0.5	N/A 35	N/A S1	N/A 0.236 in6 mm	N/A 0.689 in17.5 mm	N/A 0.728 in18.5 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-36	QUOTE	N/A 0.5	N/A 36	N/A S1	N/A 0.236 in6 mm	N/A 0.709 in18 mm	N/A 0.748 in19 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-40	QUOTE	N/A 0.5	N/A 40	N/A S1	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.827 in21 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-45	QUOTE	N/A 0.5	N/A 45	N/A S1	N/A 0.236 in6 mm	N/A 0.886 in22.5 mm	N/A 0.925 in23.5 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-48	QUOTE	N/A 0.5	N/A 48	N/A S1	N/A 0.236 in6 mm	N/A 0.945 in24 mm	N/A 0.984 in25 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-50	QUOTE	N/A 0.5	N/A 50	N/A S1	N/A 0.236 in6 mm	N/A 0.984 in25 mm	N/A 1.024 in26 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-60	QUOTE	N/A 0.5	N/A 60	N/A S1	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.220 in31 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-64	QUOTE	N/A 0.5	N/A 64	N/A S1	N/A 0.315 in8 mm	N/A 1.260 in32 mm	N/A 1.299 in33 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-70	QUOTE	N/A 0.5	N/A 70	N/A S1	N/A 0.315 in8 mm	N/A 1.378 in35 mm	N/A 1.417 in36 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
SUSF0.5-80	QUOTE	N/A 0.5	N/A 80	N/A S1	N/A 0.394 in10 mm	N/A 1.575 in40 mm	N/A 1.614 in41 mm	N/A 0.748 in19 mm	N/A	Add To Cart Request Quote
SUSF0.5-90	QUOTE	N/A 0.5	N/A 90	N/A S1	N/A 0.394 in10 mm	N/A 1.772 in45 mm	N/A 1.811 in46 mm	N/A 0.748 in19 mm	N/A	Add To Cart Request Quote
SUSF0.5-100	QUOTE	N/A 0.5	N/A 100	N/A S1	N/A 0.394 in10 mm	N/A 1.969 in50 mm	N/A 2.008 in51 mm	N/A 0.748 in19 mm	N/A	Add To Cart Request Quote
SUSF0.5-120	QUOTE	N/A 0.5	N/A 120	N/A S1	N/A 0.394 in10 mm	N/A 2.362 in60 mm	N/A 2.402 in61 mm	N/A 0.748 in19 mm	N/A	Add To Cart Request Quote
SUSF1-14	QUOTE	N/A 1	N/A 14	N/A S3	N/A 0.236 in6 mm	N/A 0.551 in14 mm	N/A 0.630 in16 mm	N/A 0.984 in25 mm	N/A	Add To Cart Request Quote
SUSF1-15	QUOTE	N/A 1	N/A 15	N/A S3	N/A 0.236 in6 mm	N/A 0.591 in15 mm	N/A 0.669 in17 mm	N/A 0.984 in25 mm	N/A	Add To Cart Request Quote
SUSF1-16	QUOTE	N/A 1	N/A 16	N/A S3	N/A 0.236 in6 mm	N/A 0.630 in16 mm	N/A 0.709 in18 mm	N/A 0.984 in25 mm	N/A	Add To Cart Request Quote
SUSF1-18	QUOTE	N/A 1	N/A 18	N/A S1	N/A 0.236 in6 mm	N/A 0.709 in18 mm	N/A 0.787 in20 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
