Spur Pinion Shafts (SSS) On KHK Gears

KHK USA Metric Gears

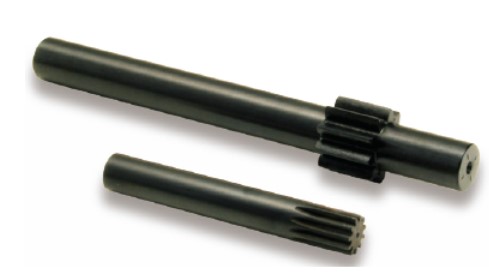

The SSS Shaft Pinions are Spur Gears made from carbon steel and are NOT hardened.

1 - 25 of 28 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

Shaft Diameter Left (A') (in)

Shaft Diameter Left (A') (mm)

Shaft Diameter Right (A) (in)

Shaft Diameter Right (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Face Width (E) (in)

Face Width (E) (mm)

Total Length (G) (in)

Total Length (G) (mm)

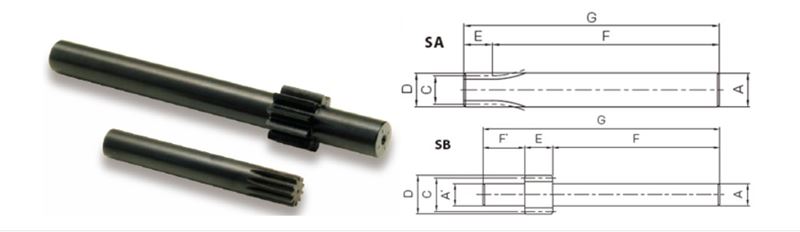

Item #	List Price	Module	No. of Teeth	Shaft Diameter Left (A')	Shaft Diameter Right (A)	Pitch Diameter (C)	Outer Diameter (D)	Face Width (E)	Total Length (G)	CAD	Add To Cart/Request Quote

SSS0.5-10	QUOTE	N/A 0.5	N/A 10	N/A	N/A 0.236 in6 mm	N/A 0.197 in5 mm	N/A 0.236 in6 mm	N/A 0.276 in7 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
SSS0.5-11	QUOTE	N/A 0.5	N/A 11	N/A	N/A 0.256 in6.5 mm	N/A 0.217 in5.5 mm	N/A 0.256 in6.5 mm	N/A 0.276 in7 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
SSS0.5-12	QUOTE	N/A 0.5	N/A 12	N/A	N/A 0.276 in7 mm	N/A 0.236 in6 mm	N/A 0.276 in7 mm	N/A 0.276 in7 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
SSS0.5-13	QUOTE	N/A 0.5	N/A 13	N/A	N/A 0.295 in7.5 mm	N/A 0.256 in6.5 mm	N/A 0.295 in7.5 mm	N/A 0.276 in7 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
SSS0.8-10	QUOTE	N/A 0.8	N/A 10	N/A	N/A 0.378 in9.6 mm	N/A 0.315 in8 mm	N/A 0.378 in9.6 mm	N/A 0.394 in10 mm	N/A 2.756 in70 mm	N/A	Add To Cart Request Quote
SSS0.8-11	QUOTE	N/A 0.8	N/A 11	N/A	N/A 0.409 in10.4 mm	N/A 0.346 in8.8 mm	N/A 0.409 in10.4 mm	N/A 0.394 in10 mm	N/A 2.756 in70 mm	N/A	Add To Cart Request Quote
SSS0.8-12	QUOTE	N/A 0.8	N/A 12	N/A	N/A 0.441 in11.2 mm	N/A 0.378 in9.6 mm	N/A 0.441 in11.2 mm	N/A 0.394 in10 mm	N/A 2.756 in70 mm	N/A	Add To Cart Request Quote
SSS0.8-13	QUOTE	N/A 0.8	N/A 13	N/A	N/A 0.472 in12 mm	N/A 0.409 in10.4 mm	N/A 0.472 in12 mm	N/A 0.394 in10 mm	N/A 2.756 in70 mm	N/A	Add To Cart Request Quote
SSS1-10	QUOTE	N/A 1	N/A 10	N/A	N/A 0.472 in12 mm	N/A 0.394 in10 mm	N/A 0.472 in12 mm	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A	Add To Cart Request Quote
SSS1-11	QUOTE	N/A 1	N/A 11	N/A	N/A 0.512 in13 mm	N/A 0.433 in11 mm	N/A 0.512 in13 mm	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A	Add To Cart Request Quote
SSS1-12	QUOTE	N/A 1	N/A 12	N/A	N/A 0.551 in14 mm	N/A 0.472 in12 mm	N/A 0.551 in14 mm	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A	Add To Cart Request Quote
SSS1-13	QUOTE	N/A 1	N/A 13	N/A	N/A 0.591 in15 mm	N/A 0.512 in13 mm	N/A 0.591 in15 mm	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A	Add To Cart Request Quote
SSS1.5-10	QUOTE	N/A 1.5	N/A 10	N/A 0.480 in12.2 mm	N/A 0.480 in12.2 mm	N/A 0.591 in15 mm	N/A 0.762 in19.35 mm	N/A 0.591 in15 mm	N/A 5.512 in140 mm	N/A	Add To Cart Request Quote
SSS1.5-11	QUOTE	N/A 1.5	N/A 11	N/A 0.539 in13.7 mm	N/A 0.539 in13.7 mm	N/A 0.650 in16.5 mm	N/A 0.821 in20.85 mm	N/A 0.591 in15 mm	N/A 5.512 in140 mm	N/A	Add To Cart Request Quote
SSS1.5-12	QUOTE	N/A 1.5	N/A 12	N/A 0.539 in13.7 mm	N/A 0.539 in13.7 mm	N/A 0.709 in18 mm	N/A 0.827 in21 mm	N/A 0.591 in15 mm	N/A 5.512 in140 mm	N/A	Add To Cart Request Quote
SSS1.5-13	QUOTE	N/A 1.5	N/A 13	N/A 0.598 in15.2 mm	N/A 0.598 in15.2 mm	N/A 0.768 in19.5 mm	N/A 0.886 in22.5 mm	N/A 0.591 in15 mm	N/A 5.512 in140 mm	N/A	Add To Cart Request Quote
SSS2-10	QUOTE	N/A 2	N/A 10	N/A 0.638 in16.2 mm	N/A 0.638 in16.2 mm	N/A 0.787 in20 mm	N/A 1.016 in25.8 mm	N/A 0.787 in20 mm	N/A 6.693 in170 mm	N/A	Add To Cart Request Quote
SSS2-11	QUOTE	N/A 2	N/A 11	N/A 0.717 in18.2 mm	N/A 0.717 in18.2 mm	N/A 0.866 in22 mm	N/A 1.094 in27.8 mm	N/A 0.787 in20 mm	N/A 6.693 in170 mm	N/A	Add To Cart Request Quote
SSS2-12	QUOTE	N/A 2	N/A 12	N/A 0.717 in18.2 mm	N/A 0.717 in18.2 mm	N/A 0.945 in24 mm	N/A 1.102 in28 mm	N/A 0.787 in20 mm	N/A 6.693 in170 mm	N/A	Add To Cart Request Quote
SSS2-13	QUOTE	N/A 2	N/A 13	N/A 0.795 in20.2 mm	N/A 0.795 in20.2 mm	N/A 1.024 in26 mm	N/A 1.181 in30 mm	N/A 0.787 in20 mm	N/A 6.693 in170 mm	N/A	Add To Cart Request Quote
SSS2.5-10	QUOTE	N/A 2.5	N/A 10	N/A 0.795 in20.2 mm	N/A 0.795 in20.2 mm	N/A 0.984 in25 mm	N/A 1.270 in32.25 mm	N/A 0.984 in25 mm	N/A 7.677 in195 mm	N/A	Add To Cart Request Quote
SSS2.5-11	QUOTE	N/A 2.5	N/A 11	N/A 0.894 in22.7 mm	N/A 0.894 in22.7 mm	N/A 1.083 in27.5 mm	N/A 1.368 in34.75 mm	N/A 0.984 in25 mm	N/A 7.677 in195 mm	N/A	Add To Cart Request Quote
SSS2.5-12	QUOTE	N/A 2.5	N/A 12	N/A 0.894 in22.7 mm	N/A 0.894 in22.7 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 0.984 in25 mm	N/A 7.677 in195 mm	N/A	Add To Cart Request Quote
SSS2.5-13	QUOTE	N/A 2.5	N/A 13	N/A 0.992 in25.2 mm	N/A 0.992 in25.2 mm	N/A 1.280 in32.5 mm	N/A 1.476 in37.5 mm	N/A 0.984 in25 mm	N/A 7.677 in195 mm	N/A	Add To Cart Request Quote
SSS3-10	QUOTE	N/A 3	N/A 10	N/A 0.953 in24.2 mm	N/A 0.953 in24.2 mm	N/A 1.181 in30 mm	N/A 1.524 in38.7 mm	N/A 1.181 in30 mm	N/A 8.661 in220 mm	N/A	Add To Cart Request Quote
