Spur Gears (SS FA) On KHK Gears

The SS FA Spur Gears are made from carbon steel and are NOT hardened. These Spur Gears are assembled with a locking hub for the most secure fastening to your shaft.

1 - 25 of 1136 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

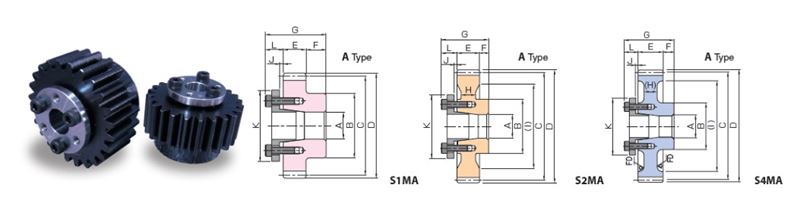

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

SS1.5-26F10A	QUOTE	N/A 1.5	N/A 26	N/A S1MA	N/A 0.394 in10 mm	N/A 1.654 in42 mm	N/A 1.260 in32 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-27F10A	QUOTE	N/A 1.5	N/A 27	N/A S1MA	N/A 0.394 in10 mm	N/A 1.713 in43.5 mm	N/A 1.339 in34 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-28F10A	QUOTE	N/A 1.5	N/A 28	N/A S1MA	N/A 0.394 in10 mm	N/A 1.772 in45 mm	N/A 1.417 in36 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-28F12A	QUOTE	N/A 1.5	N/A 28	N/A S1MA	N/A 0.472 in12 mm	N/A 1.772 in45 mm	N/A 1.417 in36 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-29F10A	QUOTE	N/A 1.5	N/A 29	N/A S1MA	N/A 0.394 in10 mm	N/A 1.831 in46.5 mm	N/A 1.457 in37 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-29F12A	QUOTE	N/A 1.5	N/A 29	N/A S1MA	N/A 0.472 in12 mm	N/A 1.831 in46.5 mm	N/A 1.457 in37 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-30F10A	QUOTE	N/A 1.5	N/A 30	N/A S1MA	N/A 0.394 in10 mm	N/A 1.890 in48 mm	N/A 1.496 in38 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-30F12A	QUOTE	N/A 1.5	N/A 30	N/A S1MA	N/A 0.472 in12 mm	N/A 1.890 in48 mm	N/A 1.496 in38 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-32F10A	QUOTE	N/A 1.5	N/A 32	N/A S1MA	N/A 0.394 in10 mm	N/A 2.008 in51 mm	N/A 1.575 in40 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-32F12A	QUOTE	N/A 1.5	N/A 32	N/A S1MA	N/A 0.472 in12 mm	N/A 2.008 in51 mm	N/A 1.575 in40 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-32F14A	QUOTE	N/A 1.5	N/A 32	N/A S1MA	N/A 0.551 in14 mm	N/A 2.008 in51 mm	N/A 1.575 in40 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-32F15A	QUOTE	N/A 1.5	N/A 32	N/A S1MA	N/A 0.591 in15 mm	N/A 2.008 in51 mm	N/A 1.575 in40 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-32F16A	QUOTE	N/A 1.5	N/A 32	N/A S1MA	N/A 0.630 in16 mm	N/A 2.008 in51 mm	N/A 1.575 in40 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-34F10A	QUOTE	N/A 1.5	N/A 34	N/A S1MA	N/A 0.394 in10 mm	N/A 2.126 in54 mm	N/A 1.575 in40 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-34F12A	QUOTE	N/A 1.5	N/A 34	N/A S1MA	N/A 0.472 in12 mm	N/A 2.126 in54 mm	N/A 1.575 in40 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-34F14A	QUOTE	N/A 1.5	N/A 34	N/A S1MA	N/A 0.551 in14 mm	N/A 2.126 in54 mm	N/A 1.575 in40 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-34F15A	QUOTE	N/A 1.5	N/A 34	N/A S1MA	N/A 0.591 in15 mm	N/A 2.126 in54 mm	N/A 1.575 in40 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-34F16A	QUOTE	N/A 1.5	N/A 34	N/A S1MA	N/A 0.630 in16 mm	N/A 2.126 in54 mm	N/A 1.575 in40 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-34F17A	QUOTE	N/A 1.5	N/A 34	N/A S1MA	N/A 0.669 in17 mm	N/A 2.126 in54 mm	N/A 1.575 in40 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-35F10A	QUOTE	N/A 1.5	N/A 35	N/A S1MA	N/A 0.394 in10 mm	N/A 2.185 in55.5 mm	N/A 1.654 in42 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-35F12A	QUOTE	N/A 1.5	N/A 35	N/A S1MA	N/A 0.472 in12 mm	N/A 2.185 in55.5 mm	N/A 1.654 in42 mm	N/A 1.378 in35 mm	N/A	Add To Cart Request Quote
SS1.5-35F14A	QUOTE	N/A 1.5	N/A 35	N/A S1MA	N/A 0.551 in14 mm	N/A 2.185 in55.5 mm	N/A 1.654 in42 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-35F15A	QUOTE	N/A 1.5	N/A 35	N/A S1MA	N/A 0.591 in15 mm	N/A 2.185 in55.5 mm	N/A 1.654 in42 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-35F16A	QUOTE	N/A 1.5	N/A 35	N/A S1MA	N/A 0.630 in16 mm	N/A 2.185 in55.5 mm	N/A 1.654 in42 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote
SS1.5-35F17A	QUOTE	N/A 1.5	N/A 35	N/A S1MA	N/A 0.669 in17 mm	N/A 2.185 in55.5 mm	N/A 1.654 in42 mm	N/A 1.457 in37 mm	N/A	Add To Cart Request Quote

1 - 25 of 1136 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »
