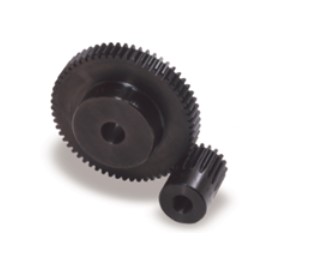

Spur Gears (SS) On KHK Gears

The SS Spur Gears are made from carbon steel and are NOT hardened. However, the SS-H Spur Gears do have the gear teeth hardened. These Spur Gears are economically priced, general usage gears, with a large selection of modules and numbers of teeth. These Spur Gears are easily customizable and J Series configurations of these Spur Gears are also available.

1 - 25 of 3681 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Bore Type	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

SS0.5-15A	QUOTE	N/A Plain	N/A 0.5	N/A 15	N/A S3T	N/A 0.118 in3 mm	N/A 0.295 in7.5 mm	N/A 0.335 in8.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-16A	QUOTE	N/A Plain	N/A 0.5	N/A 16	N/A S3T	N/A 0.118 in3 mm	N/A 0.315 in8 mm	N/A 0.354 in9 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-17A	QUOTE	N/A Plain	N/A 0.5	N/A 17	N/A S3T	N/A 0.118 in3 mm	N/A 0.335 in8.5 mm	N/A 0.374 in9.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-18A	QUOTE	N/A Plain	N/A 0.5	N/A 18	N/A S3T	N/A 0.157 in4 mm	N/A 0.354 in9 mm	N/A 0.394 in10 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-19A	QUOTE	N/A Plain	N/A 0.5	N/A 19	N/A S3T	N/A 0.157 in4 mm	N/A 0.374 in9.5 mm	N/A 0.413 in10.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-20A	QUOTE	N/A Plain	N/A 0.5	N/A 20	N/A S3T	N/A 0.118 in3 mm	N/A 0.394 in10 mm	N/A 0.433 in11 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-20B	QUOTE	N/A Plain	N/A 0.5	N/A 20	N/A S3T	N/A 0.157 in4 mm	N/A 0.394 in10 mm	N/A 0.433 in11 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-21A	QUOTE	N/A Plain	N/A 0.5	N/A 21	N/A S3T	N/A 0.157 in4 mm	N/A 0.413 in10.5 mm	N/A 0.453 in11.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-22A	QUOTE	N/A Plain	N/A 0.5	N/A 22	N/A S3T	N/A 0.157 in4 mm	N/A 0.433 in11 mm	N/A 0.472 in12 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-23A	QUOTE	N/A Plain	N/A 0.5	N/A 23	N/A S3T	N/A 0.157 in4 mm	N/A 0.453 in11.5 mm	N/A 0.492 in12.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-24A	QUOTE	N/A Plain	N/A 0.5	N/A 24	N/A S3T	N/A 0.157 in4 mm	N/A 0.472 in12 mm	N/A 0.512 in13 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-24B	QUOTE	N/A Plain	N/A 0.5	N/A 24	N/A S3T	N/A 0.197 in5 mm	N/A 0.472 in12 mm	N/A 0.512 in13 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-25A	QUOTE	N/A Plain	N/A 0.5	N/A 25	N/A S3T	N/A 0.157 in4 mm	N/A 0.492 in12.5 mm	N/A 0.531 in13.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-25B	QUOTE	N/A Plain	N/A 0.5	N/A 25	N/A S3T	N/A 0.197 in5 mm	N/A 0.492 in12.5 mm	N/A 0.531 in13.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-26A	QUOTE	N/A Plain	N/A 0.5	N/A 26	N/A S3T	N/A 0.157 in4 mm	N/A 0.512 in13 mm	N/A 0.551 in14 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-27A	QUOTE	N/A Plain	N/A 0.5	N/A 27	N/A S3T	N/A 0.157 in4 mm	N/A 0.531 in13.5 mm	N/A 0.571 in14.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-28A	QUOTE	N/A Plain	N/A 0.5	N/A 28	N/A S1T	N/A 0.157 in4 mm	N/A 0.551 in14 mm	N/A 0.591 in15 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SS0.5-29A	QUOTE	N/A Plain	N/A 0.5	N/A 29	N/A S1T	N/A 0.157 in4 mm	N/A 0.571 in14.5 mm	N/A 0.610 in15.5 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SS0.5-30A	QUOTE	N/A Plain	N/A 0.5	N/A 30	N/A S1T	N/A 0.157 in4 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SS0.5-30B	QUOTE	N/A Plain	N/A 0.5	N/A 30	N/A S1T	N/A 0.197 in5 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SS0.5-30C	QUOTE	N/A Plain	N/A 0.5	N/A 30	N/A S1T	N/A 0.236 in6 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SS0.5-32A	QUOTE	N/A Plain	N/A 0.5	N/A 32	N/A S1T	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.669 in17 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SS0.5-34A	QUOTE	N/A Plain	N/A 0.5	N/A 34	N/A S1T	N/A 0.197 in5 mm	N/A 0.669 in17 mm	N/A 0.709 in18 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SS0.5-35A	QUOTE	N/A Plain	N/A 0.5	N/A 35	N/A S1T	N/A 0.197 in5 mm	N/A 0.689 in17.5 mm	N/A 0.728 in18.5 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SS0.5-36A	QUOTE	N/A Plain	N/A 0.5	N/A 36	N/A S1T	N/A 0.197 in5 mm	N/A 0.709 in18 mm	N/A 0.748 in19 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote

1 - 25 of 3681 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »
