Sintered Metal Spur Gears (LS)
Spur Gears

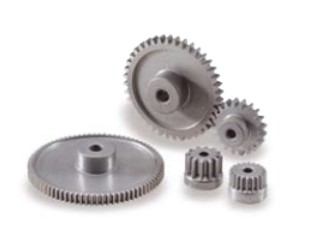

The LS Sintered Spur Gears are made from pressed metal. These gears have a lower cost due to elimination of machining and reduction in wasted material.
Item # |
List Price |
Module |
No. of Teeth |

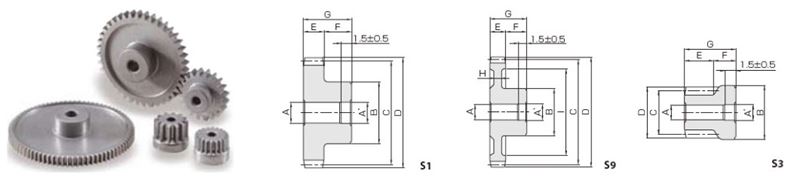

Shape |
Bore Diameter (A) |
Bore Diameter 2 (A') |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LS0.5-12 LS0.5-12/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.5 | No. of Teeth N/A 12 | Shape N/A S3 | Bore Diameter (A) N/A 0.079 in2 mm | Bore Diameter 2 (A') N/A 0.083 in2.1 mm | Pitch Diameter (C) N/A 0.236 in6 mm | Outer Diameter (D) N/A 0.276 in7 mm | Total Length (G) N/A 0.276 in7 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.5-16 LS0.5-16/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.5 | No. of Teeth N/A 16 | Shape N/A S3 | Bore Diameter (A) N/A 0.079 in2 mm | Bore Diameter 2 (A') N/A 0.083 in2.1 mm | Pitch Diameter (C) N/A 0.315 in8 mm | Outer Diameter (D) N/A 0.354 in9 mm | Total Length (G) N/A 0.276 in7 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.5-20 LS0.5-20/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.5 | No. of Teeth N/A 20 | Shape N/A S3 | Bore Diameter (A) N/A 0.118 in3 mm | Bore Diameter 2 (A') N/A 0.122 in3.1 mm | Pitch Diameter (C) N/A 0.394 in10 mm | Outer Diameter (D) N/A 0.433 in11 mm | Total Length (G) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.5-30 LS0.5-30/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.5 | No. of Teeth N/A 30 | Shape N/A S1 | Bore Diameter (A) N/A 0.118 in3 mm | Bore Diameter 2 (A') N/A 0.122 in3.1 mm | Pitch Diameter (C) N/A 0.591 in15 mm | Outer Diameter (D) N/A 0.630 in16 mm | Total Length (G) N/A 0.276 in7 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.5-50 LS0.5-50/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.5 | No. of Teeth N/A 50 | Shape N/A S9 | Bore Diameter (A) N/A 0.157 in4 mm | Bore Diameter 2 (A') N/A 0.161 in4.1 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.024 in26 mm | Total Length (G) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.5-60 LS0.5-60/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.5 | No. of Teeth N/A 60 | Shape N/A S9 | Bore Diameter (A) N/A 0.157 in4 mm | Bore Diameter 2 (A') N/A 0.161 in4.1 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.220 in31 mm | Total Length (G) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.5-70 LS0.5-70/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.5 | No. of Teeth N/A 70 | Shape N/A S9 | Bore Diameter (A) N/A 0.157 in4 mm | Bore Diameter 2 (A') N/A 0.161 in4.1 mm | Pitch Diameter (C) N/A 1.378 in35 mm | Outer Diameter (D) N/A 1.417 in36 mm | Total Length (G) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.5-80 LS0.5-80/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.5 | No. of Teeth N/A 80 | Shape N/A S9 | Bore Diameter (A) N/A 0.157 in4 mm | Bore Diameter 2 (A') N/A 0.161 in4.1 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.614 in41 mm | Total Length (G) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.8-12 LS0.8-12/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.8 | No. of Teeth N/A 12 | Shape N/A S3 | Bore Diameter (A) N/A 0.118 in3 mm | Bore Diameter 2 (A') N/A 0.122 in3.1 mm | Pitch Diameter (C) N/A 0.378 in9.6 mm | Outer Diameter (D) N/A 0.441 in11.2 mm | Total Length (G) N/A 0.354 in9 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.8-16 LS0.8-16/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.8 | No. of Teeth N/A 16 | Shape N/A S1 | Bore Diameter (A) N/A 0.118 in3 mm | Bore Diameter 2 (A') N/A 0.122 in3.1 mm | Pitch Diameter (C) N/A 0.504 in12.8 mm | Outer Diameter (D) N/A 0.567 in14.4 mm | Total Length (G) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.8-20 LS0.8-20/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.8 | No. of Teeth N/A 20 | Shape N/A S1 | Bore Diameter (A) N/A 0.118 in3 mm | Bore Diameter 2 (A') N/A 0.122 in3.1 mm | Pitch Diameter (C) N/A 0.630 in16 mm | Outer Diameter (D) N/A 0.693 in17.6 mm | Total Length (G) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.8-30 LS0.8-30/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.8 | No. of Teeth N/A 30 | Shape N/A S1 | Bore Diameter (A) N/A 0.157 in4 mm | Bore Diameter 2 (A') N/A 0.161 in4.1 mm | Pitch Diameter (C) N/A 0.945 in24 mm | Outer Diameter (D) N/A 1.008 in25.6 mm | Total Length (G) N/A 0.354 in9 mm | CAD N/A |
Add To Cart
Request Quote |
| LS0.8-50 LS0.8-50/Asset/Sintered-Metal-Spur-Gears--LS-.jpg | QUOTE | Module N/A 0.8 | No. of Teeth N/A 50 | Shape N/A S9 | Bore Diameter (A) N/A 0.157 in4 mm | Bore Diameter 2 (A') N/A 0.161 in4.1 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.638 in41.6 mm | Total Length (G) N/A 0.354 in9 mm | CAD N/A |
Add To Cart
Request Quote |
