Plastic Spur with Stainless Steel Core (PU) On KHK Gears

KHK USA Metric Gears

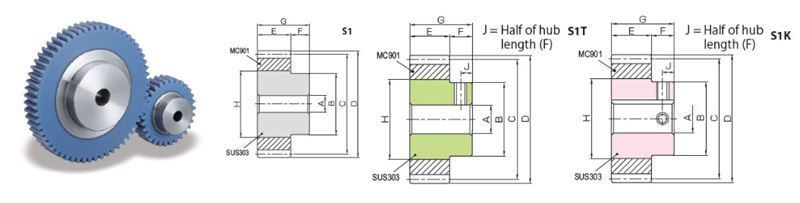

Nylon teeth with stainless steel hubs for rust-resistance.

1 - 25 of 167 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Bore Type	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

PU1-30	QUOTE	N/A Plain	N/A 1	N/A 30	N/A S1	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-30J8	QUOTE	N/A Finished	N/A 1	N/A 30	N/A S1T	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-35	QUOTE	N/A Plain	N/A 1	N/A 35	N/A S1	N/A 0.315 in8 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-35J10	QUOTE	N/A Finished	N/A 1	N/A 35	N/A S1K	N/A 0.394 in10 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-35J12	QUOTE	N/A Finished	N/A 1	N/A 35	N/A S1K	N/A 0.472 in12 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-35J8	QUOTE	N/A Finished	N/A 1	N/A 35	N/A S1T	N/A 0.315 in8 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-40	QUOTE	N/A Plain	N/A 1	N/A 40	N/A S1	N/A 0.394 in10 mm	N/A 1.575 in40 mm	N/A 1.654 in42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-40J10	QUOTE	N/A Finished	N/A 1	N/A 40	N/A S1K	N/A 0.394 in10 mm	N/A 1.575 in40 mm	N/A 1.654 in42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-40J12	QUOTE	N/A Finished	N/A 1	N/A 40	N/A S1K	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.654 in42 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-50	QUOTE	N/A Plain	N/A 1	N/A 50	N/A S1	N/A 0.394 in10 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-50J10	QUOTE	N/A Finished	N/A 1	N/A 50	N/A S1K	N/A 0.394 in10 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-50J12	QUOTE	N/A Finished	N/A 1	N/A 50	N/A S1K	N/A 0.472 in12 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-50J14	QUOTE	N/A Finished	N/A 1	N/A 50	N/A S1K	N/A 0.551 in14 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-50J15	QUOTE	N/A Finished	N/A 1	N/A 50	N/A S1K	N/A 0.591 in15 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-50J16	QUOTE	N/A Finished	N/A 1	N/A 50	N/A S1K	N/A 0.630 in16 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-50J17	QUOTE	N/A Finished	N/A 1	N/A 50	N/A S1K	N/A 0.669 in17 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60	QUOTE	N/A Plain	N/A 1	N/A 60	N/A S1	N/A 0.394 in10 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60J10	QUOTE	N/A Finished	N/A 1	N/A 60	N/A S1K	N/A 0.394 in10 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60J12	QUOTE	N/A Finished	N/A 1	N/A 60	N/A S1K	N/A 0.472 in12 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60J14	QUOTE	N/A Finished	N/A 1	N/A 60	N/A S1K	N/A 0.551 in14 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60J15	QUOTE	N/A Finished	N/A 1	N/A 60	N/A S1K	N/A 0.591 in15 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60J16	QUOTE	N/A Finished	N/A 1	N/A 60	N/A S1K	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60J17	QUOTE	N/A Finished	N/A 1	N/A 60	N/A S1K	N/A 0.669 in17 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60J18	QUOTE	N/A Finished	N/A 1	N/A 60	N/A S1K	N/A 0.709 in18 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
PU1-60J19	QUOTE	N/A Finished	N/A 1	N/A 60	N/A S1K	N/A 0.748 in19 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
