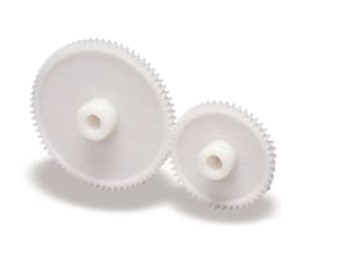

Injection Molded Spur Gears (DS) On KHK Gears

KHK USA Metric Gears

Low cost, mass-produced products suitable for light duty office machines.

1 - 25 of 66 | Results Per Page | View | Unit of Measure

1 2 3

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

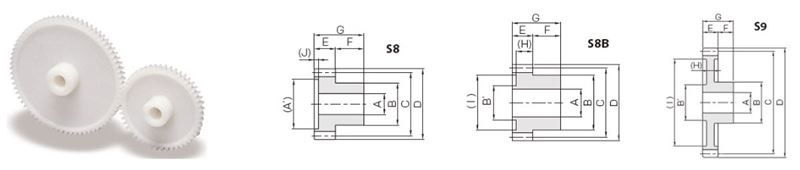

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

DS0.5-12	QUOTE	N/A 0.5	N/A 12	N/A S8	N/A 0.079 in2 mm	N/A 0.236 in6 mm	N/A 0.276 in7 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-15	QUOTE	N/A 0.5	N/A 15	N/A S8	N/A 0.079 in2 mm	N/A 0.295 in7.5 mm	N/A 0.335 in8.5 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-16	QUOTE	N/A 0.5	N/A 16	N/A S8	N/A 0.118 in3 mm	N/A 0.315 in8 mm	N/A 0.354 in9 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-18	QUOTE	N/A 0.5	N/A 18	N/A S8	N/A 0.118 in3 mm	N/A 0.354 in9 mm	N/A 0.394 in10 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-20	QUOTE	N/A 0.5	N/A 20	N/A S8B	N/A 0.157 in4 mm	N/A 0.394 in10 mm	N/A 0.433 in11 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-24	QUOTE	N/A 0.5	N/A 24	N/A S9	N/A 0.157 in4 mm	N/A 0.472 in12 mm	N/A 0.512 in13 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-25	QUOTE	N/A 0.5	N/A 25	N/A S9	N/A 0.157 in4 mm	N/A 0.492 in12.5 mm	N/A 0.531 in13.5 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-28	QUOTE	N/A 0.5	N/A 28	N/A S9	N/A 0.157 in4 mm	N/A 0.551 in14 mm	N/A 0.591 in15 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-30	QUOTE	N/A 0.5	N/A 30	N/A S9	N/A 0.197 in5 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-32	QUOTE	N/A 0.5	N/A 32	N/A S9	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.669 in17 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-35	QUOTE	N/A 0.5	N/A 35	N/A S9	N/A 0.197 in5 mm	N/A 0.689 in17.5 mm	N/A 0.728 in18.5 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-36	QUOTE	N/A 0.5	N/A 36	N/A S9	N/A 0.197 in5 mm	N/A 0.709 in18 mm	N/A 0.748 in19 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-40	QUOTE	N/A 0.5	N/A 40	N/A S9	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.827 in21 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-45	QUOTE	N/A 0.5	N/A 45	N/A S9	N/A 0.197 in5 mm	N/A 0.886 in22.5 mm	N/A 0.925 in23.5 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-48	QUOTE	N/A 0.5	N/A 48	N/A S9	N/A 0.197 in5 mm	N/A 0.945 in24 mm	N/A 0.984 in25 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-50	QUOTE	N/A 0.5	N/A 50	N/A S9	N/A 0.197 in5 mm	N/A 0.984 in25 mm	N/A 1.024 in26 mm	N/A 0.276 in7 mm	N/A	Add To Cart Request Quote
DS0.5-56	QUOTE	N/A 0.5	N/A 56	N/A S9	N/A 0.236 in6 mm	N/A 1.102 in28 mm	N/A 1.142 in29 mm	N/A 0.315 in8 mm	N/A	Add To Cart Request Quote
DS0.5-60	QUOTE	N/A 0.5	N/A 60	N/A S9	N/A 0.236 in6 mm	N/A 1.181 in30 mm	N/A 1.220 in31 mm	N/A 0.315 in8 mm	N/A	Add To Cart Request Quote
DS0.5-64	QUOTE	N/A 0.5	N/A 64	N/A S9	N/A 0.236 in6 mm	N/A 1.260 in32 mm	N/A 1.299 in33 mm	N/A 0.315 in8 mm	N/A	Add To Cart Request Quote
DS0.5-70	QUOTE	N/A 0.5	N/A 70	N/A S9	N/A 0.236 in6 mm	N/A 1.378 in35 mm	N/A 1.417 in36 mm	N/A 0.315 in8 mm	N/A	Add To Cart Request Quote
DS0.5-72	QUOTE	N/A 0.5	N/A 72	N/A S9	N/A 0.236 in6 mm	N/A 1.417 in36 mm	N/A 1.457 in37 mm	N/A 0.315 in8 mm	N/A	Add To Cart Request Quote
DS0.5-80	QUOTE	N/A 0.5	N/A 80	N/A S9	N/A 0.236 in6 mm	N/A 1.575 in40 mm	N/A 1.614 in41 mm	N/A 0.315 in8 mm	N/A	Add To Cart Request Quote
DS0.8-12	QUOTE	N/A 0.8	N/A 12	N/A S9	N/A 0.118 in3 mm	N/A 0.378 in9.6 mm	N/A 0.441 in11.2 mm	N/A 0.354 in9 mm	N/A	Add To Cart Request Quote
DS0.8-15	QUOTE	N/A 0.8	N/A 15	N/A S9	N/A 0.118 in3 mm	N/A 0.472 in12 mm	N/A 0.535 in13.6 mm	N/A 0.354 in9 mm	N/A	Add To Cart Request Quote
DS0.8-16	QUOTE	N/A 0.8	N/A 16	N/A S9	N/A 0.157 in4 mm	N/A 0.504 in12.8 mm	N/A 0.567 in14.4 mm	N/A 0.354 in9 mm	N/A	Add To Cart Request Quote
