Inch Gears
Spur Gears
Now Available from KHK are stock inch spur gears to meet your requirements for quality products, with quick delivery and afffordable pricing.
Clear
Filter
Module
No. of teeth

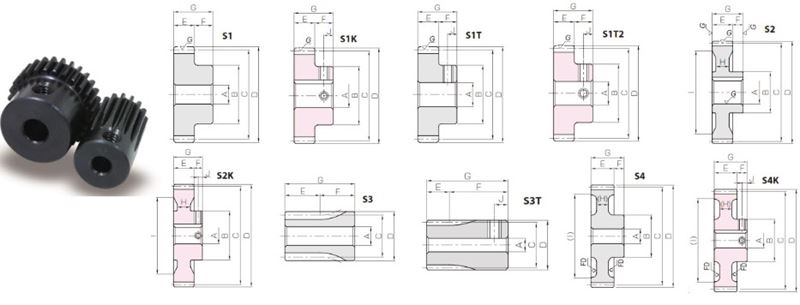

Bore (A) (in)
Bore (A) (mm)
Pitch Diameter (C) (in)
Pitch Diameter (C) (mm)
Face Width (E) (in)
Face Width (E) (mm)
Item # |
List Price |
Bore Type |
Module |
No. of teeth |
Bore (A) |
Pitch Diameter (C) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| SSDP10PA14.5-18 SSDP10PA14.5-18/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 18 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 1.800 in45.72 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-20 SSDP10PA14.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 20 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 2.000 in50.8 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-24 SSDP10PA14.5-24/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 24 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 2.400 in60.96 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-25 SSDP10PA14.5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 25 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 2.500 in63.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-30 SSDP10PA14.5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 30 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 3.000 in76.2 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-32 SSDP10PA14.5-32/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 32 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 3.200 in81.28 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-36 SSDP10PA14.5-36/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 36 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 3.600 in91.44 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-40 SSDP10PA14.5-40/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 40 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 4.000 in101.6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-45 SSDP10PA14.5-45/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 45 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 4.500 in114.3 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-48 SSDP10PA14.5-48/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 48 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 4.800 in121.92 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-50 SSDP10PA14.5-50/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 50 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 5.000 in127 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-60 SSDP10PA14.5-60/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 60 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 6.000 in152.4 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-70 SSDP10PA14.5-70/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 70 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 7.000 in177.8 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-72 SSDP10PA14.5-72/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 72 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 7.200 in182.88 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-80 SSDP10PA14.5-80/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 80 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 8.000 in203.2 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA14.5-90 SSDP10PA14.5-90/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 90 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 9.000 in228.6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-18 SSDP10PA20-18/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 18 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 1.800 in45.72 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-20 SSDP10PA20-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 20 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 2.000 in50.8 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-24 SSDP10PA20-24/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 24 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 2.400 in60.96 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-25 SSDP10PA20-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 25 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 2.500 in63.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-30 SSDP10PA20-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 30 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 3.000 in76.2 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-32 SSDP10PA20-32/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 32 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 3.200 in81.28 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-36 SSDP10PA20-36/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 36 | Bore (A) N/A 0.750 in19.05 mm | Pitch Diameter (C) N/A 3.600 in91.44 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-40 SSDP10PA20-40/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 40 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 4.000 in101.6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSDP10PA20-45 SSDP10PA20-45/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.54 | No. of teeth N/A 45 | Bore (A) N/A 0.875 in22.225 mm | Pitch Diameter (C) N/A 4.500 in114.3 mm | CAD N/A |
Add To Cart
Request Quote |
