Hubless Thin Face Spur Gears (SSAY)
Spur Gears

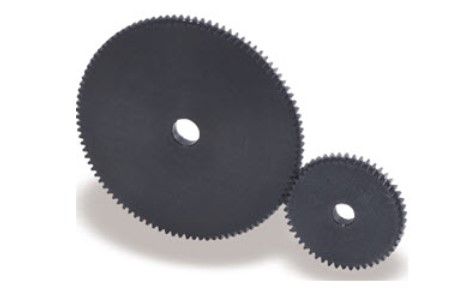

The SSAY Hubless Spur Gears are made from carbon steel and are NOT hardened. These Spur Gears are designed with a narrower face width than the SSA Series Spur Gears. These Spur Gears are suitable for light-duty applications. These Spur Gears are easily customizable.
Item # |
List Price |
Module |
No. of Teeth |

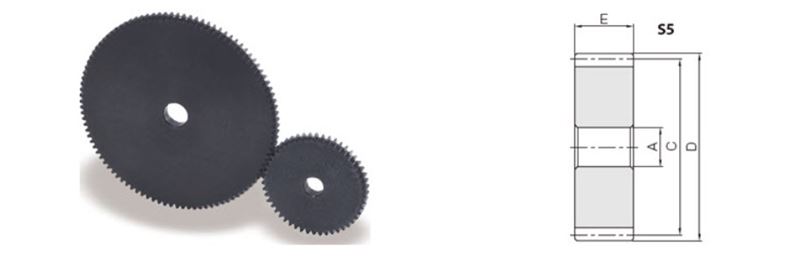

Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Face Width (E) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| SSAY1-20 SSAY1-20/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.866 in22 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-24 SSAY1-24/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 24 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.945 in24 mm | Outer Diameter (D) N/A 1.024 in26 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-25 SSAY1-25/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 25 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.063 in27 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-28 SSAY1-28/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 28 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.102 in28 mm | Outer Diameter (D) N/A 1.181 in30 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-30 SSAY1-30/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 30 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.260 in32 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-32 SSAY1-32/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 32 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.260 in32 mm | Outer Diameter (D) N/A 1.339 in34 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-35 SSAY1-35/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 35 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.378 in35 mm | Outer Diameter (D) N/A 1.457 in37 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-36 SSAY1-36/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 36 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.417 in36 mm | Outer Diameter (D) N/A 1.496 in38 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-40 SSAY1-40/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 40 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.654 in42 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-45 SSAY1-45/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 45 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.850 in47 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-48 SSAY1-48/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 48 | Shape N/A S5 | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.890 in48 mm | Outer Diameter (D) N/A 1.969 in50 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-50 SSAY1-50/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 50 | Shape N/A S5 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.047 in52 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-55 SSAY1-55/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 55 | Shape N/A S5 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.165 in55 mm | Outer Diameter (D) N/A 2.244 in57 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-56 SSAY1-56/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 56 | Shape N/A S5 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.205 in56 mm | Outer Diameter (D) N/A 2.283 in58 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-60 SSAY1-60/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 60 | Shape N/A S5 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.441 in62 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-70 SSAY1-70/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 70 | Shape N/A S5 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.756 in70 mm | Outer Diameter (D) N/A 2.835 in72 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-80 SSAY1-80/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 80 | Shape N/A S5 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.228 in82 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
| SSAY1-100 SSAY1-100/Asset/Hubless-Thin-Face-Spur-Gears--SSAY-.jpg | QUOTE | Module N/A 1 | No. of Teeth N/A 100 | Shape N/A S5 | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.016 in102 mm | Face Width (E) N/A 0.236 in6 mm | CAD N/A |
Add To Cart
Request Quote |
