Ground Spur Gears (SSG-R)
Spur Gears

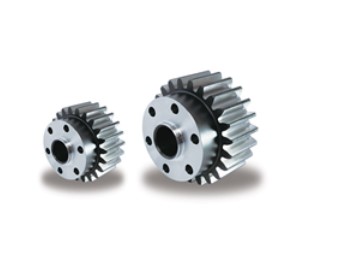

The SSG-R Ground Spur Gears are made from carbon steel, are induction hardened and the teeth are ground finished. These pinions are designed to mate with Nabtesco Gearheads.
Clear
Filter
Module
No. of Teeth

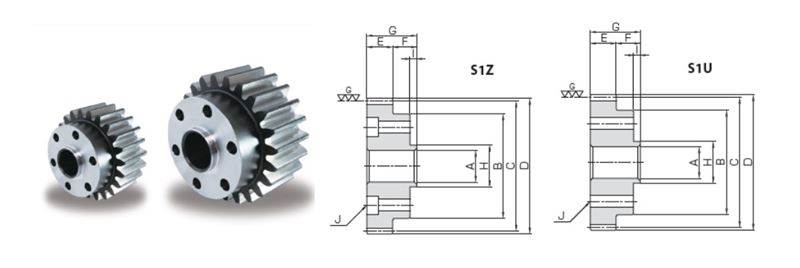

Shape
Bore Diameter (A) (in)
Bore Diameter (A) (mm)
Pitch Diameter (C) (in)
Pitch Diameter (C) (mm)
Outer Diameter (D) (in)
Outer Diameter (D) (mm)
Total Length (G) (in)
Total Length (G) (mm)
Item # |
List Price |
Module |
No. of Teeth |
Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| SSG1.5-50R24 SSG1.5-50R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 1.5 | No. of Teeth N/A 50 | Shape N/A S1Z | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.071 in78 mm | Total Length (G) N/A 1.142 in29 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG2-40R24 SSG2-40R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 2 | No. of Teeth N/A 40 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.307 in84 mm | Total Length (G) N/A 1.417 in36 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG2.5-27R24 SSG2.5-27R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 2.5 | No. of Teeth N/A 27 | Shape N/A S1U | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.657 in67.5 mm | Outer Diameter (D) N/A 2.854 in72.5 mm | Total Length (G) N/A 1.693 in43 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG2.5-28R24 SSG2.5-28R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 2.5 | No. of Teeth N/A 28 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.756 in70 mm | Outer Diameter (D) N/A 2.953 in75 mm | Total Length (G) N/A 1.693 in43 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG2.5-29R24 SSG2.5-29R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 2.5 | No. of Teeth N/A 29 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.854 in72.5 mm | Outer Diameter (D) N/A 3.051 in77.5 mm | Total Length (G) N/A 1.693 in43 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG2.5-30R24 SSG2.5-30R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.150 in80 mm | Total Length (G) N/A 1.693 in43 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG2.5-42R32 SSG2.5-42R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 2.5 | No. of Teeth N/A 42 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 4.134 in105 mm | Outer Diameter (D) N/A 4.331 in110 mm | Total Length (G) N/A 1.693 in43 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-23R24 SSG3-23R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 23 | Shape N/A S1U | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.717 in69 mm | Outer Diameter (D) N/A 2.953 in75 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-24R24 SSG3-24R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 24 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.835 in72 mm | Outer Diameter (D) N/A 3.071 in78 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-25R24 SSG3-25R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 25 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.189 in81 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-26R24 SSG3-26R24/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 26 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.071 in78 mm | Outer Diameter (D) N/A 3.307 in84 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-30R32 SSG3-30R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 30 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.780 in96 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-32R32 SSG3-32R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 32 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.780 in96 mm | Outer Diameter (D) N/A 4.016 in102 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-34R32 SSG3-34R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 34 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 4.016 in102 mm | Outer Diameter (D) N/A 4.252 in108 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-35R32 SSG3-35R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 35 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 4.134 in105 mm | Outer Diameter (D) N/A 4.370 in111 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG3-36R32 SSG3-36R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 3 | No. of Teeth N/A 36 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 4.252 in108 mm | Outer Diameter (D) N/A 4.488 in114 mm | Total Length (G) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG4-24R32 SSG4-24R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 4 | No. of Teeth N/A 24 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.780 in96 mm | Outer Diameter (D) N/A 4.094 in104 mm | Total Length (G) N/A 2.559 in65 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG4-25R32 SSG4-25R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 4 | No. of Teeth N/A 25 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.252 in108 mm | Total Length (G) N/A 2.559 in65 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG5-20R32 SSG5-20R32/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 5 | No. of Teeth N/A 20 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.331 in110 mm | Total Length (G) N/A 2.953 in75 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG5-30R47 SSG5-30R47/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 5 | No. of Teeth N/A 30 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Outer Diameter (D) N/A 6.299 in160 mm | Total Length (G) N/A 2.953 in75 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG6-25R47 SSG6-25R47/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 6 | No. of Teeth N/A 25 | Shape N/A S1Z | Bore Diameter (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Outer Diameter (D) N/A 6.378 in162 mm | Total Length (G) N/A 3.465 in88 mm | CAD N/A |
Add To Cart
Request Quote |
| SSG6-30R60 SSG6-30R60/Asset/Ground-Spur-Gears--SSG-R-.jpg | QUOTE | Module N/A 6 | No. of Teeth N/A 30 | Shape N/A S1Z | Bore Diameter (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 7.087 in180 mm | Outer Diameter (D) N/A 7.559 in192 mm | Total Length (G) N/A 3.465 in88 mm | CAD N/A |
Add To Cart
Request Quote |
