Ground Spur Gears (SSG) On KHK Gears

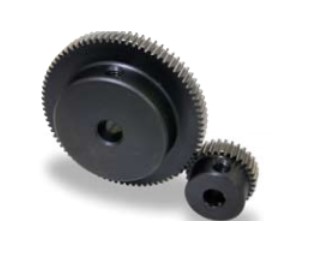

The SSG Ground Spur Gears are made from carbon steel, are induction hardened and the teeth are ground finished. Since the heat treatment is applied only to the tooth area, secondary operations can be preformed on the hub and bore. J Series configurations of the SSG Ground Spur Gears are available.

1 - 25 of 1626 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

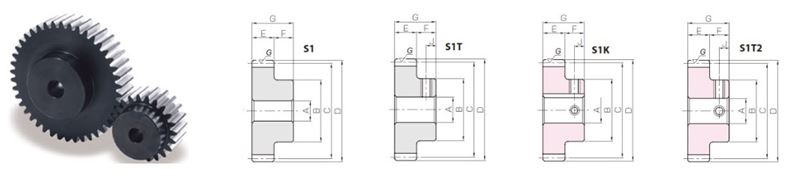

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

SSG0.5-30A	QUOTE	N/A 0.5	N/A 30	N/A S1T	N/A 0.197 in5 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-30B	QUOTE	N/A 0.5	N/A 30	N/A S1T	N/A 0.236 in6 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-32A	QUOTE	N/A 0.5	N/A 32	N/A S1T	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.669 in17 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-34A	QUOTE	N/A 0.5	N/A 34	N/A S1T	N/A 0.197 in5 mm	N/A 0.669 in17 mm	N/A 0.709 in18 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-35A	QUOTE	N/A 0.5	N/A 35	N/A S1T	N/A 0.197 in5 mm	N/A 0.689 in17.5 mm	N/A 0.728 in18.5 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-36A	QUOTE	N/A 0.5	N/A 36	N/A S1T	N/A 0.197 in5 mm	N/A 0.709 in18 mm	N/A 0.748 in19 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-38A	QUOTE	N/A 0.5	N/A 38	N/A S1T	N/A 0.197 in5 mm	N/A 0.748 in19 mm	N/A 0.787 in20 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-40A	QUOTE	N/A 0.5	N/A 40	N/A S1T	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.827 in21 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-40B	QUOTE	N/A 0.5	N/A 40	N/A S1T	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.827 in21 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-50A	QUOTE	N/A 0.5	N/A 50	N/A S1T	N/A 0.197 in5 mm	N/A 0.984 in25 mm	N/A 1.024 in26 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-50B	QUOTE	N/A 0.5	N/A 50	N/A S1T	N/A 0.236 in6 mm	N/A 0.984 in25 mm	N/A 1.024 in26 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-60A	QUOTE	N/A 0.5	N/A 60	N/A S1T	N/A 0.236 in6 mm	N/A 1.181 in30 mm	N/A 1.220 in31 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-60B	QUOTE	N/A 0.5	N/A 60	N/A S1T	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.220 in31 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-70A	QUOTE	N/A 0.5	N/A 70	N/A S1T	N/A 0.236 in6 mm	N/A 1.378 in35 mm	N/A 1.417 in36 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-70B	QUOTE	N/A 0.5	N/A 70	N/A S1T	N/A 0.315 in8 mm	N/A 1.378 in35 mm	N/A 1.417 in36 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-80A	QUOTE	N/A 0.5	N/A 80	N/A S1T	N/A 0.236 in6 mm	N/A 1.575 in40 mm	N/A 1.614 in41 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.5-80B	QUOTE	N/A 0.5	N/A 80	N/A S1T	N/A 0.315 in8 mm	N/A 1.575 in40 mm	N/A 1.614 in41 mm	N/A 0.472 in12 mm	N/A	Add To Cart Request Quote
SSG0.8-20A	QUOTE	N/A 0.8	N/A 20	N/A S1T	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.693 in17.6 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SSG0.8-20B	QUOTE	N/A 0.8	N/A 20	N/A S1T	N/A 0.236 in6 mm	N/A 0.630 in16 mm	N/A 0.693 in17.6 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SSG0.8-21A	QUOTE	N/A 0.8	N/A 21	N/A S1T	N/A 0.236 in6 mm	N/A 0.661 in16.8 mm	N/A 0.724 in18.4 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SSG0.8-22A	QUOTE	N/A 0.8	N/A 22	N/A S1T	N/A 0.236 in6 mm	N/A 0.693 in17.6 mm	N/A 0.756 in19.2 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SSG0.8-23A	QUOTE	N/A 0.8	N/A 23	N/A S1T	N/A 0.236 in6 mm	N/A 0.724 in18.4 mm	N/A 0.787 in20 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SSG0.8-24A	QUOTE	N/A 0.8	N/A 24	N/A S1T	N/A 0.197 in5 mm	N/A 0.756 in19.2 mm	N/A 0.819 in20.8 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SSG0.8-24B	QUOTE	N/A 0.8	N/A 24	N/A S1T	N/A 0.236 in6 mm	N/A 0.756 in19.2 mm	N/A 0.819 in20.8 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
SSG0.8-25A	QUOTE	N/A 0.8	N/A 25	N/A S1T	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.850 in21.6 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
