Ground Spur Gears (MSGA·MSGB) On KHK Gears

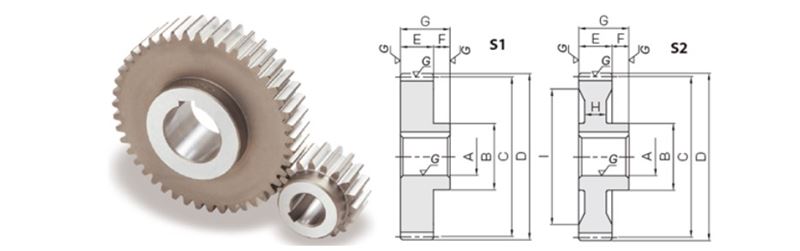

The MSGA & MSGB Ground Spur Gears are made from a chrome-alloy steel and are carburized and ground finished. This results in a high-strength, abrasion-resistant and compact designed Spur Gear.

1 - 25 of 180 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	List Price	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

MSGA1-18	QUOTE	N/A 1	N/A 18	N/A S1	N/A 0.315 in8 mm	N/A 0.709 in18 mm	N/A 0.787 in20 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-18	Add To Cart Request Quote
MSGA1-20	QUOTE	N/A 1	N/A 20	N/A S1	N/A 0.315 in8 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-20	Add To Cart Request Quote
MSGA1-24	QUOTE	N/A 1	N/A 24	N/A S1	N/A 0.394 in10 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-24	Add To Cart Request Quote
MSGA1-25	QUOTE	N/A 1	N/A 25	N/A S1	N/A 0.394 in10 mm	N/A 0.984 in25 mm	N/A 1.063 in27 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-25	Add To Cart Request Quote
MSGA1-30	QUOTE	N/A 1	N/A 30	N/A S1	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-30	Add To Cart Request Quote
MSGA1-35	QUOTE	N/A 1	N/A 35	N/A S1	N/A 0.394 in10 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-35	Add To Cart Request Quote
MSGA1-36	QUOTE	N/A 1	N/A 36	N/A S1	N/A 0.472 in12 mm	N/A 1.417 in36 mm	N/A 1.496 in38 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-36	Add To Cart Request Quote
MSGA1-40	QUOTE	N/A 1	N/A 40	N/A S1	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.654 in42 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-40	Add To Cart Request Quote
MSGA1-45	QUOTE	N/A 1	N/A 45	N/A S1	N/A 0.472 in12 mm	N/A 1.772 in45 mm	N/A 1.850 in47 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-45	Add To Cart Request Quote
MSGA1-48	QUOTE	N/A 1	N/A 48	N/A S1	N/A 0.472 in12 mm	N/A 1.890 in48 mm	N/A 1.969 in50 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-48	Add To Cart Request Quote
MSGA1-50	QUOTE	N/A 1	N/A 50	N/A S1	N/A 0.472 in12 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.591 in15 mm	N/A KHK_1766610177:MSGA1-50	Add To Cart Request Quote
MSGA1-55	QUOTE	N/A 1	N/A 55	N/A S1	N/A 0.591 in15 mm	N/A 2.165 in55 mm	N/A 2.244 in57 mm	N/A 0.787 in20 mm	N/A KHK_1766610177:MSGA1-55	Add To Cart Request Quote
MSGA1-60	QUOTE	N/A 1	N/A 60	N/A S1	N/A 0.591 in15 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.787 in20 mm	N/A KHK_1766610177:MSGA1-60	Add To Cart Request Quote
MSGA1-70	QUOTE	N/A 1	N/A 70	N/A S1	N/A 0.787 in20 mm	N/A 2.756 in70 mm	N/A 2.835 in72 mm	N/A 0.787 in20 mm	N/A KHK_1766610177:MSGA1-70	Add To Cart Request Quote
MSGA1-80	QUOTE	N/A 1	N/A 80	N/A S1	N/A 0.787 in20 mm	N/A 3.150 in80 mm	N/A 3.228 in82 mm	N/A 0.787 in20 mm	N/A KHK_1766610177:MSGA1-80	Add To Cart Request Quote
MSGA1-100	QUOTE	N/A 1	N/A 100	N/A S1	N/A 0.787 in20 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A KHK_1766610177:MSGA1-100	Add To Cart Request Quote
MSGA1.5-15	QUOTE	N/A 1.5	N/A 15	N/A S1	N/A 0.394 in10 mm	N/A 0.886 in22.5 mm	N/A 1.004 in25.5 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-15	Add To Cart Request Quote
MSGA1.5-18	QUOTE	N/A 1.5	N/A 18	N/A S1	N/A 0.394 in10 mm	N/A 1.063 in27 mm	N/A 1.181 in30 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-18	Add To Cart Request Quote
MSGA1.5-20	QUOTE	N/A 1.5	N/A 20	N/A S1	N/A 0.472 in12 mm	N/A 1.181 in30 mm	N/A 1.299 in33 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-20	Add To Cart Request Quote
MSGA1.5-24	QUOTE	N/A 1.5	N/A 24	N/A S1	N/A 0.472 in12 mm	N/A 1.417 in36 mm	N/A 1.535 in39 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-24	Add To Cart Request Quote
MSGA1.5-25	QUOTE	N/A 1.5	N/A 25	N/A S1	N/A 0.551 in14 mm	N/A 1.476 in37.5 mm	N/A 1.594 in40.5 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-25	Add To Cart Request Quote
MSGA1.5-30	QUOTE	N/A 1.5	N/A 30	N/A S1	N/A 0.591 in15 mm	N/A 1.772 in45 mm	N/A 1.890 in48 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-30	Add To Cart Request Quote
MSGA1.5-35	QUOTE	N/A 1.5	N/A 35	N/A S1	N/A 0.591 in15 mm	N/A 2.067 in52.5 mm	N/A 2.185 in55.5 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-35	Add To Cart Request Quote
MSGA1.5-36	QUOTE	N/A 1.5	N/A 36	N/A S1	N/A 0.591 in15 mm	N/A 2.126 in54 mm	N/A 2.244 in57 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-36	Add To Cart Request Quote
MSGA1.5-40	QUOTE	N/A 1.5	N/A 40	N/A S1	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.480 in63 mm	N/A 0.984 in25 mm	N/A KHK_1766610177:MSGA1.5-40	Add To Cart Request Quote
