Acetal F-Loc Hub Spur Gears (DSF) On KHK Gears

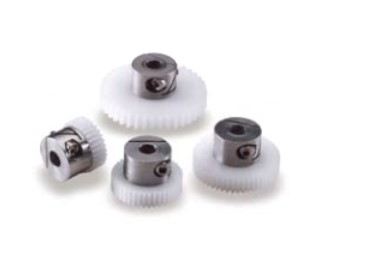

These fine pitch, acetal spur gears have an integral stainless steel hub locking mechanism which enables the gear to be fastened to the shaft without any keys or set screws.

1 - 25 of 30 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

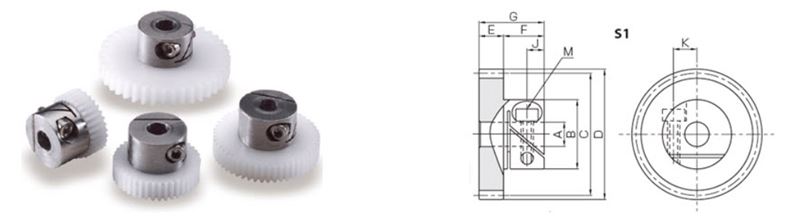

Item #	List Price	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	CAD	Add To Cart/Request Quote

DSF0.5-36	QUOTE	N/A 0.5	N/A 36	N/A S1	N/A 0.197 in5 mm	N/A 0.709 in18 mm	N/A 0.748 in19 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-40	QUOTE	N/A 0.5	N/A 40	N/A S1	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.827 in21 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-45	QUOTE	N/A 0.5	N/A 45	N/A S1	N/A 0.197 in5 mm	N/A 0.886 in22.5 mm	N/A 0.925 in23.5 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-48	QUOTE	N/A 0.5	N/A 48	N/A S1	N/A 0.197 in5 mm	N/A 0.945 in24 mm	N/A 0.984 in25 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-50	QUOTE	N/A 0.5	N/A 50	N/A S1	N/A 0.197 in5 mm	N/A 0.984 in25 mm	N/A 1.024 in26 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-60	QUOTE	N/A 0.5	N/A 60	N/A S1	N/A 0.197 in5 mm	N/A 1.181 in30 mm	N/A 1.220 in31 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-64	QUOTE	N/A 0.5	N/A 64	N/A S1	N/A 0.197 in5 mm	N/A 1.260 in32 mm	N/A 1.299 in33 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-70	QUOTE	N/A 0.5	N/A 70	N/A S1	N/A 0.197 in5 mm	N/A 1.378 in35 mm	N/A 1.417 in36 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-80	QUOTE	N/A 0.5	N/A 80	N/A S1	N/A 0.197 in5 mm	N/A 1.575 in40 mm	N/A 1.614 in41 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
DSF0.5-90	QUOTE	N/A 0.5	N/A 90	N/A S1	N/A 0.315 in8 mm	N/A 1.772 in45 mm	N/A 1.811 in46 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
DSF0.5-100	QUOTE	N/A 0.5	N/A 100	N/A S1	N/A 0.315 in8 mm	N/A 1.969 in50 mm	N/A 2.008 in51 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
DSF0.5-120	QUOTE	N/A 0.5	N/A 120	N/A S1	N/A 0.315 in8 mm	N/A 2.362 in60 mm	N/A 2.402 in61 mm	N/A 0.591 in15 mm	N/A	Add To Cart Request Quote
DSF1-20	QUOTE	N/A 1	N/A 20	N/A S1	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.866 in22 mm	N/A 0.571 in14.5 mm	N/A	Add To Cart Request Quote
DSF1-24	QUOTE	N/A 1	N/A 24	N/A S1	N/A 0.197 in5 mm	N/A 0.945 in24 mm	N/A 1.024 in26 mm	N/A 0.571 in14.5 mm	N/A	Add To Cart Request Quote
DSF1-25	QUOTE	N/A 1	N/A 25	N/A S1	N/A 0.197 in5 mm	N/A 0.984 in25 mm	N/A 1.063 in27 mm	N/A 0.571 in14.5 mm	N/A	Add To Cart Request Quote
DSF1-28	QUOTE	N/A 1	N/A 28	N/A S1	N/A 0.197 in5 mm	N/A 1.102 in28 mm	N/A 1.181 in30 mm	N/A 0.571 in14.5 mm	N/A	Add To Cart Request Quote
DSF1-30	QUOTE	N/A 1	N/A 30	N/A S1	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
DSF1-32	QUOTE	N/A 1	N/A 32	N/A S1	N/A 0.315 in8 mm	N/A 1.260 in32 mm	N/A 1.339 in34 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
DSF1-35	QUOTE	N/A 1	N/A 35	N/A S1	N/A 0.315 in8 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
DSF1-36	QUOTE	N/A 1	N/A 36	N/A S1	N/A 0.315 in8 mm	N/A 1.417 in36 mm	N/A 1.496 in38 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
DSF1-40	QUOTE	N/A 1	N/A 40	N/A S1	N/A 0.315 in8 mm	N/A 1.575 in40 mm	N/A 1.654 in42 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
DSF1-45	QUOTE	N/A 1	N/A 45	N/A S1	N/A 0.315 in8 mm	N/A 1.772 in45 mm	N/A 1.850 in47 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
DSF1-48	QUOTE	N/A 1	N/A 48	N/A S1	N/A 0.315 in8 mm	N/A 1.890 in48 mm	N/A 1.969 in50 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
DSF1-50	QUOTE	N/A 1	N/A 50	N/A S1	N/A 0.315 in8 mm	N/A 1.969 in50 mm	N/A 2.047 in52 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
DSF1-60	QUOTE	N/A 1	N/A 60	N/A S1	N/A 0.315 in8 mm	N/A 2.362 in60 mm	N/A 2.441 in62 mm	N/A 0.630 in16 mm	N/A	Add To Cart Request Quote
