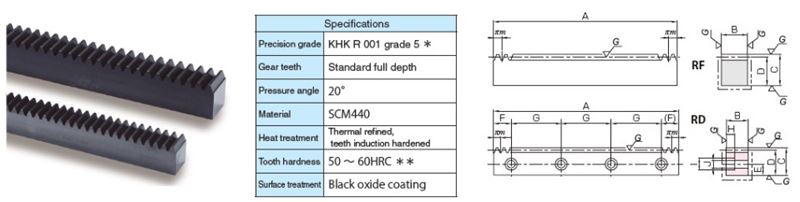

Thermal Refined Racks w/ Machined Ends (KRF

Increased strength with SCM440 material which is thermal refined.

1 - 24 of 24 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	List Price	Module	Effective No. of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Height (C)	Height To Pitch Line (D)	CAD	Add To Cart/Request Quote

KRF1.5-1000	QUOTE	N/A 1.5	N/A 212	N/A RF	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRF1.5-500	QUOTE	N/A 1.5	N/A 106	N/A RF	N/A 19.666 in499.51 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRF2.5-1000	QUOTE	N/A 2.5	N/A 128	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
KRF2.5-500	QUOTE	N/A 2.5	N/A 64	N/A RF	N/A 19.789 in502.65 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
KRF2-1000	QUOTE	N/A 2	N/A 160	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRF2-500	QUOTE	N/A 2	N/A 80	N/A RF	N/A 19.789 in502.65 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRF3-1000	QUOTE	N/A 3	N/A 106	N/A RF	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
KRF3-500	QUOTE	N/A 3	N/A 53	N/A RF	N/A 19.666 in499.51 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
KRF4-1000	QUOTE	N/A 4	N/A 80	N/A RF	N/A 39.579 in1005.31 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A	Add To Cart Request Quote
KRF4-500	QUOTE	N/A 4	N/A 40	N/A RF	N/A 19.789 in502.65 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A	Add To Cart Request Quote
KRF5-1000	QUOTE	N/A 5	N/A 64	N/A RF	N/A 39.579 in1005.31 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
KRF5-500	QUOTE	N/A 5	N/A 32	N/A RF	N/A 19.789 in502.65 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
KRFD1.5-1000J	QUOTE	N/A 1.5	N/A 212	N/A RD	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRFD1.5-500J	QUOTE	N/A 1.5	N/A 106	N/A RD	N/A 19.666 in499.51 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRFD2.5-1000J	QUOTE	N/A 2.5	N/A 128	N/A RD	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
KRFD2.5-500J	QUOTE	N/A 2.5	N/A 64	N/A RD	N/A 19.789 in502.65 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
KRFD2-1000J	QUOTE	N/A 2	N/A 160	N/A RD	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRFD2-500J	QUOTE	N/A 2	N/A 80	N/A RD	N/A 19.789 in502.65 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRFD3-1000J	QUOTE	N/A 3	N/A 106	N/A RD	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
KRFD3-500J	QUOTE	N/A 3	N/A 53	N/A RD	N/A 19.666 in499.51 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
KRFD4-1000J	QUOTE	N/A 4	N/A 80	N/A RD	N/A 39.579 in1005.31 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A	Add To Cart Request Quote
KRFD4-500J	QUOTE	N/A 4	N/A 40	N/A RD	N/A 19.789 in502.65 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A	Add To Cart Request Quote
KRFD5-1000J	QUOTE	N/A 5	N/A 64	N/A RD	N/A 39.579 in1005.31 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
KRFD5-500J	QUOTE	N/A 5	N/A 32	N/A RD	N/A 19.789 in502.65 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
