Thermal Refined Ground Racks (KRG - KRGF

High strength and abrasion-resistant for precision linear motion.

1 - 25 of 25 | Results Per Page | View | Unit of Measure

Request Information Compare Items

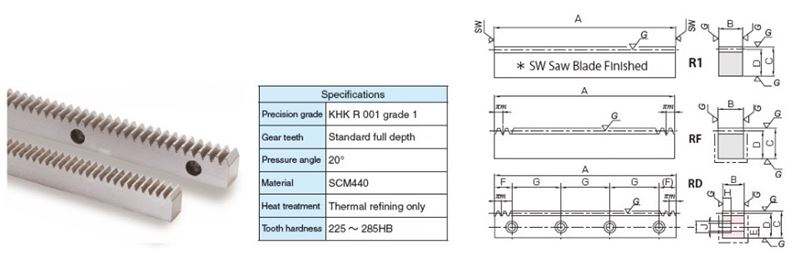

Item #	List Price	Module	Effective No. of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Height (C)	Height To Pitch Line (D)	CAD	Add To Cart/Request Quote

KRG1.5-100	QUOTE	N/A 1.5	N/A 20	N/A R1	N/A 3.976 in101 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRG1.5-500	QUOTE	N/A 1.5	N/A 105	N/A R1	N/A 19.882 in505 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRG1-100	QUOTE	N/A 1	N/A 29	N/A R1	N/A 3.858 in98 mm	N/A 0.394 in10 mm	N/A 0.591 in15 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
KRG1-500	QUOTE	N/A 1	N/A 159	N/A R1	N/A 19.882 in505 mm	N/A 0.394 in10 mm	N/A 0.591 in15 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
KRG2.5-100	QUOTE	N/A 2.5	N/A 11	N/A R1	N/A 3.937 in100 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
KRG2.5-500	QUOTE	N/A 2.5	N/A 63	N/A R1	N/A 19.882 in505 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
KRG2-100	QUOTE	N/A 2	N/A 14	N/A R1	N/A 3.858 in98 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRG2-500	QUOTE	N/A 2	N/A 79	N/A R1	N/A 19.882 in505 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRG3-100	QUOTE	N/A 3	N/A 9	N/A R1	N/A 3.976 in101 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
KRG3-500	QUOTE	N/A 3	N/A 52	N/A R1	N/A 19.882 in505 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
KRGD1.5-500	QUOTE	N/A 1.5	N/A 106	N/A RD	N/A 19.666 in499.51 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRGD1-500	QUOTE	N/A 1	N/A 159	N/A RD	N/A 19.666 in499.51 mm	N/A 0.394 in10 mm	N/A 0.591 in15 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
KRGD2.5-500	QUOTE	N/A 2.5	N/A 64	N/A RD	N/A 19.789 in502.65 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
KRGD2-500	QUOTE	N/A 2	N/A 80	N/A RD	N/A 19.789 in502.65 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRGD3-500	QUOTE	N/A 3	N/A 53	N/A RD	N/A 19.666 in499.51 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
KRGF1.5-1000	QUOTE	N/A 1.5	N/A 212	N/A RF	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRGF1-1000	QUOTE	N/A 1	N/A 318	N/A RF	N/A 39.332 in999.03 mm	N/A 0.394 in10 mm	N/A 0.591 in15 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
KRGF2.5-1000	QUOTE	N/A 2.5	N/A 128	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
KRGF2-1000	QUOTE	N/A 2	N/A 160	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRGF3-1000	QUOTE	N/A 3	N/A 106	N/A RF	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
KRGF1-500	QUOTE	N/A 1	N/A 159	N/A RF	N/A 19.666 in499.51 mm	N/A 0.394 in10 mm	N/A 0.591 in15 mm	N/A 0.551 in14 mm	N/A	Add To Cart Request Quote
KRGF1.5-500	QUOTE	N/A 1.5	N/A 106	N/A RF	N/A 19.666 in499.51 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
KRGF2-500	QUOTE	N/A 2	N/A 80	N/A RF	N/A 19.789 in502.65 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
KRGF2.5-500	QUOTE	N/A 2.5	N/A 64	N/A RF	N/A 19.789 in502.65 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 0.295 in7.5 mm	N/A	Add To Cart Request Quote
KRGF3-500	QUOTE	N/A 3	N/A 53	N/A RF	N/A 19.666 in499.51 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote

1 - 25 of 25 | Results Per Page | View | Unit of Measure
