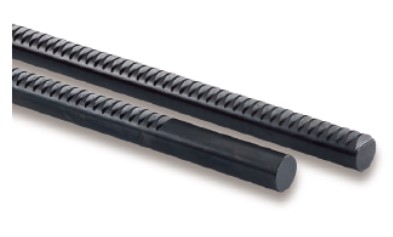

Steel Round Racks (SRO - SROS)
Racks
Convenient in applications where the rack has the reciprocal motion. S Type is easy to install.
Item # |
List Price |
Module |
Effective Number of Teeth |

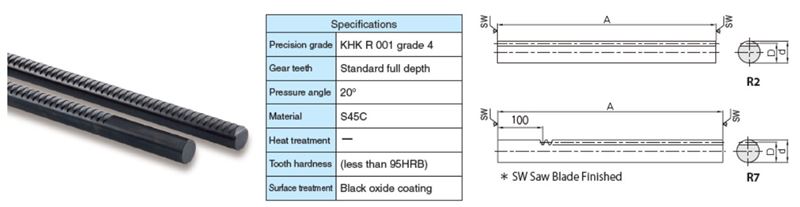

Shape |
Total Length Rack (A) |
Outer Diameter (d) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| SRO1.5-500 SRO1.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective Number of Teeth N/A 105 | Shape N/A R2 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.591 in15 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO1-500 SRO1-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | Effective Number of Teeth N/A 159 | Shape N/A R2 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.394 in10 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO2.5-1000 SRO2.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective Number of Teeth N/A 127 | Shape N/A R2 | Total Length Rack (A) N/A 39.764 in1010 mm | Outer Diameter (d) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO2.5-500 SRO2.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective Number of Teeth N/A 63 | Shape N/A R2 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO2-1000 SRO2-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 159 | Shape N/A R2 | Total Length Rack (A) N/A 39.764 in1010 mm | Outer Diameter (d) N/A 0.787 in20 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO2-500 SRO2-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 79 | Shape N/A R2 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.787 in20 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO3-1000 SRO3-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 105 | Shape N/A R2 | Total Length Rack (A) N/A 39.764 in1010 mm | Outer Diameter (d) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO3-500 SRO3-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 52 | Shape N/A R2 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO4-1000 SRO4-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective Number of Teeth N/A 79 | Shape N/A R2 | Total Length Rack (A) N/A 39.764 in1010 mm | Outer Diameter (d) N/A 1.575 in40 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO4-500 SRO4-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective Number of Teeth N/A 39 | Shape N/A R2 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 1.575 in40 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO5-1000 SRO5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | Effective Number of Teeth N/A 63 | Shape N/A R2 | Total Length Rack (A) N/A 39.764 in1010 mm | Outer Diameter (d) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| SRO6-1000 SRO6-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 6 | Effective Number of Teeth N/A 52 | Shape N/A R2 | Total Length Rack (A) N/A 39.764 in1010 mm | Outer Diameter (d) N/A 2.362 in60 mm | CAD N/A |
Add To Cart
Request Quote |
| SROS1.5-500 SROS1.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective Number of Teeth N/A 85 | Shape N/A R7 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.591 in15 mm | CAD N/A |
Add To Cart
Request Quote |
| SROS1-500 SROS1-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | Effective Number of Teeth N/A 128 | Shape N/A R7 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.394 in10 mm | CAD N/A |
Add To Cart
Request Quote |
| SROS2.5-500 SROS2.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective Number of Teeth N/A 51 | Shape N/A R7 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SROS2-500 SROS2-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 64 | Shape N/A R7 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.787 in20 mm | CAD N/A |
Add To Cart
Request Quote |
| SROS3-500 SROS3-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 42 | Shape N/A R7 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
