Steel Racks w/ Machined Ends (SRAF - SRAFD - SRAFK)
Racks

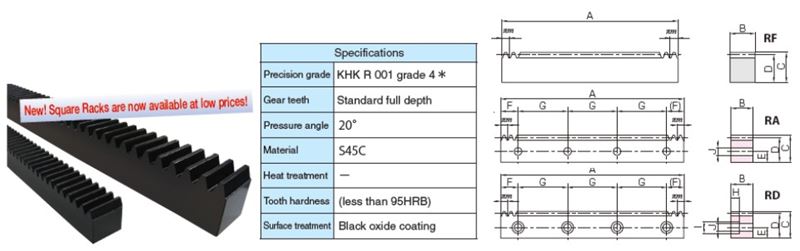

This gear rack has the same tooth height and face width sizes, more compact and reasonably priced in comparison to SRF Racks
Item # |
List Price |
Module |
Effective No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| SRAF1.5-1000 SRAF1.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.591 in15 mm | Height To Pitch Line (D) N/A 0.531 in13.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAF1.5-2000 SRAF1.5-2000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 435 | Shape N/A RF | Total Length Rack (A) N/A 80.704 in2049.88 mm | Face Width (B) N/A 0.669 in17 mm | Height (C) N/A 0.669 in17 mm | Height To Pitch Line (D) N/A 0.610 in15.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAF2.5-1000 SRAF2.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.886 in22.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAF2.5-2000 SRAF2.5-2000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 261 | Shape N/A RF | Total Length Rack (A) N/A 80.704 in2049.88 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.886 in22.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAF2-1000 SRAF2-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.709 in18 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAF2-2000 SRAF2-2000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 326 | Shape N/A RF | Total Length Rack (A) N/A 80.642 in2048.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.709 in18 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAF3-1000 SRAF3-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAF3-2000 SRAF3-2000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 217 | Shape N/A RF | Total Length Rack (A) N/A 80.519 in2045.17 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAF4-1000 SRAF4-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.575 in40 mm | Height To Pitch Line (D) N/A 1.417 in36 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAFD2.5-1000J SRAFD2.5-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.886 in22.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAFD2-1000J SRAFD2-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.709 in18 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAFD3-1000J SRAFD3-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAFD4-1000J SRAFD4-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.575 in40 mm | Height To Pitch Line (D) N/A 1.417 in36 mm | CAD N/A |
Add To Cart
Request Quote |
| SRAFK1.5-1000J SRAFK1.5-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RA | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.591 in15 mm | Height To Pitch Line (D) N/A 0.531 in13.5 mm | CAD N/A |
