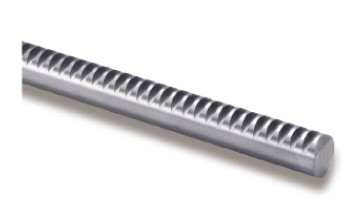

Stainless Steel Round Racks (SURO) On KHK Gears

KHK USA Metric Gears

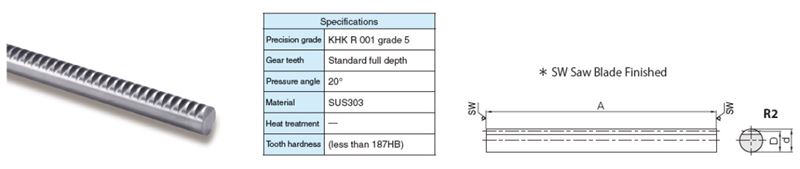

Same dimensions as SRO racks, except in stainless steel. Use where rust-resistance is required.

1 - 8 of 8 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

Item #	List Price	Module	Effective Number of Teeth	Total Length Rack (A)	Outer Diameter (d)	Height to Pitch Line (D)	CAD	Add To Cart/Request Quote

SURO1.5-500	QUOTE	N/A 1.5	N/A 105	N/A 19.882 in505 mm	N/A 0.591 in15 mm	N/A 0.531 in13.5 mm	N/A	Add To Cart Request Quote
SURO1-500	QUOTE	N/A 1	N/A 159	N/A 19.882 in505 mm	N/A 0.394 in10 mm	N/A 0.354 in9 mm	N/A	Add To Cart Request Quote
SURO2.5-1000	QUOTE	N/A 2.5	N/A 127	N/A 39.764 in1010 mm	N/A 0.984 in25 mm	N/A 0.886 in22.5 mm	N/A	Add To Cart Request Quote
SURO2.5-500	QUOTE	N/A 2.5	N/A 63	N/A 19.882 in505 mm	N/A 0.984 in25 mm	N/A 0.886 in22.5 mm	N/A	Add To Cart Request Quote
SURO2-1000	QUOTE	N/A 2	N/A 159	N/A 39.764 in1010 mm	N/A 0.787 in20 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
SURO2-500	QUOTE	N/A 2	N/A 79	N/A 19.882 in505 mm	N/A 0.787 in20 mm	N/A 0.709 in18 mm	N/A	Add To Cart Request Quote
SURO3-1000	QUOTE	N/A 3	N/A 105	N/A 39.764 in1010 mm	N/A 1.181 in30 mm	N/A 1.063 in27 mm	N/A	Add To Cart Request Quote
SURO3-500	QUOTE	N/A 3	N/A 52	N/A 19.882 in505 mm	N/A 1.181 in30 mm	N/A 1.063 in27 mm	N/A	Add To Cart Request Quote
