Plastic Racks (PR·PRF)
Racks

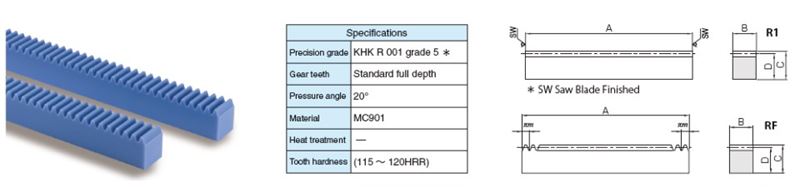

Made form MC nylon, can be used without lubrication.
Item # |
List Price |
Module |
Effective Number of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| PR1.5-1000 PR1.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective Number of Teeth N/A 212 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| PR1.5-500 PR1.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective Number of Teeth N/A 105 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| PR1-500 PR1-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | Effective Number of Teeth N/A 159 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.394 in10 mm | Height (C) N/A 0.472 in12 mm | Height To Pitch Line (D) N/A 0.433 in11 mm | CAD N/A |
Add To Cart
Request Quote |
| PR2.5-1000 PR2.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective Number of Teeth N/A 127 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| PR2.5-500 PR2.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective Number of Teeth N/A 63 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| PR2-1000 PR2-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 159 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| PR2-500 PR2-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 79 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| PR3-1000 PR3-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 105 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| PR3-500 PR3-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 52 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| PRF1.5-1000 PRF1.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective Number of Teeth N/A 212 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| PRF2.5-1000 PRF2.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective Number of Teeth N/A 128 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| PRF2-1000 PRF2-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 160 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| PRF3-1000 PRF3-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
