Plastic Racks (DRF/DRFD/DRFK)
Racks
Plastic racks with little dimensional change, absorb lesser water than MC Nylon racks. J Series products are also available.
Item # |
List Price |
Module |
Effective No. of Teeth |

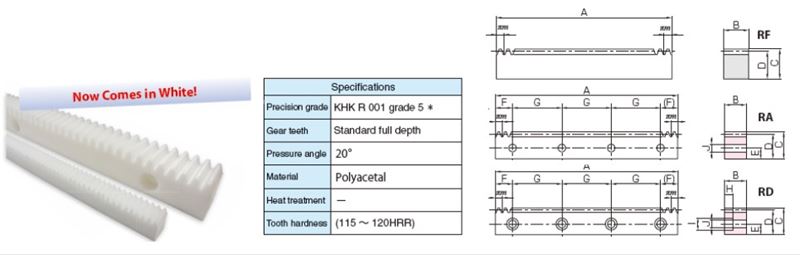

Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| DRF1.5-1000 DRF1.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| DRF1.5-500 DRF1.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| DRF1-500 DRF1-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | Effective No. of Teeth N/A 159 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.394 in10 mm | Height (C) N/A 0.472 in12 mm | Height To Pitch Line (D) N/A 0.433 in11 mm | CAD N/A |
Add To Cart
Request Quote |
| DRF2.5-1000 DRF2.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| DRF2.5-500 DRF2.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 64 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| DRF2-1000 DRF2-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| DRF2-500 DRF2-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| DRF3-1000 DRF3-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| DRF3-500 DRF3-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 53 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFD1.5-1000J DRFD1.5-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFD1.5-500J DRFD1.5-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFD2.5-1000J DRFD2.5-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFD2.5-500J DRFD2.5-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 64 | Shape N/A RD | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFD2-1000J DRFD2-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFD2-500J DRFD2-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 80 | Shape N/A RD | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFD3-1000J DRFD3-1000J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFD3-500J DRFD3-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 53 | Shape N/A RD | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| DRFK1-500J DRFK1-500J/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | Effective No. of Teeth N/A 159 | Shape N/A RA | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.394 in10 mm | Height (C) N/A 0.472 in12 mm | Height To Pitch Line (D) N/A 0.433 in11 mm | CAD N/A |
Add To Cart
Request Quote |
