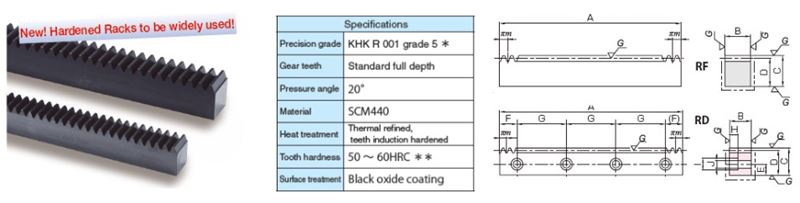

Hardened Racks (KRF-H/KRFD-H)
Racks
This is a strong rack made of Chromoly steel, treated by carburizing. Has high-strength, high wear resistance, and enables downsizing of SR racks. J Series products are also available.
Item # |
List Price |
Module |
Effective No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| KRF1.5-1000H KRF1.5-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRF2.5-1000H KRF2.5-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRF2-1000H KRF2-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| KRF3-1000H KRF3-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| KRF4-1000H KRF4-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.772 in45 mm | Height To Pitch Line (D) N/A 1.614 in41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRF5-1000H KRF5-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | Effective No. of Teeth N/A 64 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.969 in50 mm | Height (C) N/A 1.969 in50 mm | Height To Pitch Line (D) N/A 1.772 in45 mm | CAD N/A |
Add To Cart
Request Quote |
| KRFD1.5-1000HJ KRFD1.5-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRFD2.5-1000HJ KRFD2.5-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRFD2-1000HJ KRFD2-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| KRFD3-1000HJ KRFD3-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| KRFD4-1000HJ KRFD4-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.772 in45 mm | Height To Pitch Line (D) N/A 1.614 in41 mm | CAD N/A |
Add To Cart
Request Quote |
| KRFD5-1000HJ KRFD5-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | Effective No. of Teeth N/A 64 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.969 in50 mm | Height (C) N/A 1.969 in50 mm | Height To Pitch Line (D) N/A 1.772 in45 mm | CAD N/A |
Add To Cart
Request Quote |
