Hardened Ground Racks (SRG - SRGF - SRGFD - SRGFK)
Racks
Reasonably priced ground racks with abrasion-resistant characteristics. J Series products are also available.
1 2
Clear
Filter
Module
Effective No. of Teeth

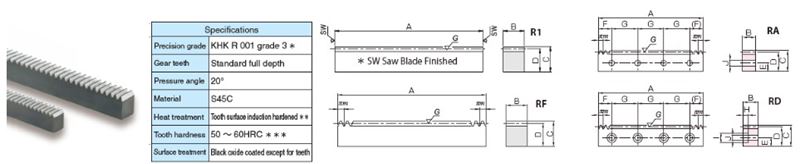

Shape
Total Length Rack (A) (in)
Total Length Rack (A) (mm)
Face Width (B) (in)
Face Width (B) (mm)
Height (C) (in)
Height (C) (mm)
Height To Pitch Line (D) (in)
Height To Pitch Line (D) (mm)
Item # |
List Price |
Module |
Effective No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| SRG0.5-100 SRG0.5-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.5 | Effective No. of Teeth N/A 61 | Shape N/A R1 | Total Length Rack (A) N/A 3.976 in101 mm | Face Width (B) N/A 0.197 in5 mm | Height (C) N/A 0.472 in12 mm | Height To Pitch Line (D) N/A 0.453 in11.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG0.8-100 SRG0.8-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.8 | Effective No. of Teeth N/A 38 | Shape N/A R1 | Total Length Rack (A) N/A 3.976 in101 mm | Face Width (B) N/A 0.315 in8 mm | Height (C) N/A 0.484 in12.3 mm | Height To Pitch Line (D) N/A 0.453 in11.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG1.5-100 SRG1.5-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 20 | Shape N/A R1 | Total Length Rack (A) N/A 3.976 in101 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG1-100 SRG1-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | Effective No. of Teeth N/A 29 | Shape N/A R1 | Total Length Rack (A) N/A 3.858 in98 mm | Face Width (B) N/A 0.394 in10 mm | Height (C) N/A 0.472 in12 mm | Height To Pitch Line (D) N/A 0.433 in11 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG2.5-100 SRG2.5-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 11 | Shape N/A R1 | Total Length Rack (A) N/A 3.937 in100 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG2-100 SRG2-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 14 | Shape N/A R1 | Total Length Rack (A) N/A 3.858 in98 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG3-100 SRG3-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 9 | Shape N/A R1 | Total Length Rack (A) N/A 3.976 in101 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG4-100 SRG4-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective No. of Teeth N/A 6 | Shape N/A R1 | Total Length Rack (A) N/A 3.858 in98 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.772 in45 mm | Height To Pitch Line (D) N/A 1.614 in41 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG5-110 SRG5-110/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | Effective No. of Teeth N/A 5 | Shape N/A R1 | Total Length Rack (A) N/A 4.252 in108 mm | Face Width (B) N/A 1.969 in50 mm | Height (C) N/A 1.969 in50 mm | Height To Pitch Line (D) N/A 1.772 in45 mm | CAD N/A |
Add To Cart
Request Quote |
| SRG6-110 SRG6-110/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 6 | Effective No. of Teeth N/A 4 | Shape N/A R1 | Total Length Rack (A) N/A 4.370 in111 mm | Face Width (B) N/A 2.362 in60 mm | Height (C) N/A 2.362 in60 mm | Height To Pitch Line (D) N/A 2.126 in54 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF0.5-300 SRGF0.5-300/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.5 | Effective No. of Teeth N/A 191 | Shape N/A RF | Total Length Rack (A) N/A 11.812 in300.02 mm | Face Width (B) N/A 0.197 in5 mm | Height (C) N/A 0.472 in12 mm | Height To Pitch Line (D) N/A 0.453 in11.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF0.8-300 SRGF0.8-300/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.8 | Effective No. of Teeth N/A 119 | Shape N/A RF | Total Length Rack (A) N/A 11.775 in299.08 mm | Face Width (B) N/A 0.315 in8 mm | Height (C) N/A 0.484 in12.3 mm | Height To Pitch Line (D) N/A 0.453 in11.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF1.5-1000 SRGF1.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF1.5-500 SRGF1.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF1-300 SRGF1-300/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | Effective No. of Teeth N/A 96 | Shape N/A RF | Total Length Rack (A) N/A 11.874 in301.59 mm | Face Width (B) N/A 0.394 in10 mm | Height (C) N/A 0.472 in12 mm | Height To Pitch Line (D) N/A 0.433 in11 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF1-500 SRGF1-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | Effective No. of Teeth N/A 159 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.394 in10 mm | Height (C) N/A 0.472 in12 mm | Height To Pitch Line (D) N/A 0.433 in11 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF2.5-1000 SRGF2.5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF2.5-500 SRGF2.5-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 64 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF2-1000 SRGF2-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF2-500 SRGF2-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF3-1000 SRGF3-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF3-500 SRGF3-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 53 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF4-1000 SRGF4-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.772 in45 mm | Height To Pitch Line (D) N/A 1.614 in41 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF4-500 SRGF4-500/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | Effective No. of Teeth N/A 40 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.772 in45 mm | Height To Pitch Line (D) N/A 1.614 in41 mm | CAD N/A |
Add To Cart
Request Quote |
| SRGF5-1000 SRGF5-1000/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | Effective No. of Teeth N/A 64 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.969 in50 mm | Height (C) N/A 1.969 in50 mm | Height To Pitch Line (D) N/A 1.772 in45 mm | CAD N/A |
Add To Cart
Request Quote |
1 2
