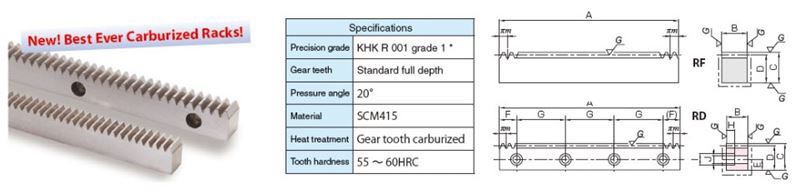

Hardened Ground Racks (MRGF - MRGFD) On KHK Gears

Has the highest strength and precision in the KHK standard rack series. Bolt holes can be remachined as carburizing is applied only within the tooth area. J Series products are also available.

1 - 7 of 7 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	List Price	Module	Effective No. of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Height (C)	Height To Pitch Line (D)	CAD	Add To Cart/Request Quote

MRGF2.5-500	QUOTE	N/A 2.5	N/A 64	N/A RF	N/A 19.789 in502.65 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
MRGF2-500	QUOTE	N/A 2	N/A 80	N/A RF	N/A 19.789 in502.65 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
MRGF3-500	QUOTE	N/A 3	N/A 53	N/A RF	N/A 19.666 in499.51 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote
MRGFD1.5-500J	QUOTE	N/A 1.5	N/A 106	N/A RD	N/A 19.666 in499.51 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A	Add To Cart Request Quote
MRGFD2.5-500J	QUOTE	N/A 2.5	N/A 64	N/A RD	N/A 19.789 in502.65 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A	Add To Cart Request Quote
MRGFD2-500J	QUOTE	N/A 2	N/A 80	N/A RD	N/A 19.789 in502.65 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A	Add To Cart Request Quote
MRGFD3-500J	QUOTE	N/A 3	N/A 53	N/A RD	N/A 19.666 in499.51 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A	Add To Cart Request Quote

1 - 7 of 7 | Results Per Page | View | Unit of Measure
