Hardened Ground Racks (KRGF-H - KRGFD-H)
Racks

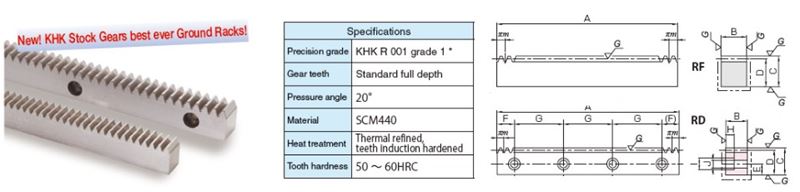

Heat treated ground gears with high precision and strength has excellent cost-performance ratio. J Series products are also available.
Item # |
List Price |
Module |
Effective No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| KRGF1.5-1000H KRGF1.5-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGF1.5-500H KRGF1.5-500H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGF2.5-1000H KRGF2.5-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGF2.5-500H KRGF2.5-500H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 64 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGF2-1000H KRGF2-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGF2-500H KRGF2-500H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGF3-1000H KRGF3-1000H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGF3-500H KRGF3-500H/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 53 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGFD1.5-1000HJ KRGFD1.5-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGFD1.5-500HJ KRGFD1.5-500HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGFD2.5-1000HJ KRGFD2.5-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGFD2.5-500HJ KRGFD2.5-500HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | Effective No. of Teeth N/A 64 | Shape N/A RD | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGFD2-1000HJ KRGFD2-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGFD2-500HJ KRGFD2-500HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective No. of Teeth N/A 80 | Shape N/A RD | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGFD3-1000HJ KRGFD3-1000HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
| KRGFD3-500HJ KRGFD3-500HJ/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective No. of Teeth N/A 53 | Shape N/A RD | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm | CAD N/A |
Add To Cart
Request Quote |
