Involute Spline Shafts (SV) On KHK Gears

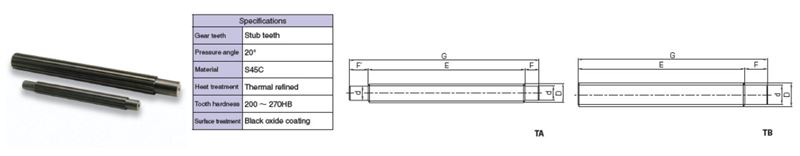

SV and SVI series are made according to the automotive involute spline standard; Involute spline shafts and bushings are thermal refined to have good abrasion-resistance.

1 - 4 of 4 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	List Price	Module	No. of teeth	Shaft Diameter / Bore (A)	Shaft Length Left (F')	Outer Diameter (D)	CAD	Add To Cart/Request Quote

SV17-170	QUOTE	N/A 1.667	N/A 8	N/A 0.512 in13 mm	N/A 0.787 in20 mm	N/A 0.656 in16.67 mm	N/A	Add To Cart Request Quote
SV20-200	QUOTE	N/A 1.667	N/A 10	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.774 in19.67 mm	N/A	Add To Cart Request Quote
SV25-250	QUOTE	N/A 1.667	N/A 13	N/A 0.787 in20 mm	N/A	N/A 0.971 in24.67 mm	N/A	Add To Cart Request Quote
SV30-300	QUOTE	N/A 1.667	N/A 16	N/A 0.984 in25 mm	N/A	N/A 1.168 in29.67 mm	N/A	Add To Cart Request Quote
