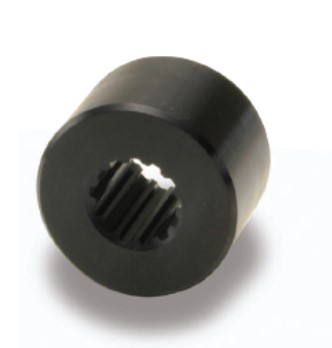

Involute Spline Bushings (SVI) On KHK Gears

SV and SVI series are made according to the automotive involute spline standard; Involute spline shafts and bushings are thermal refined to have good abrasion-resistance.

1 - 4 of 4 | Results Per Page | View | Unit of Measure

Request Information Compare Items

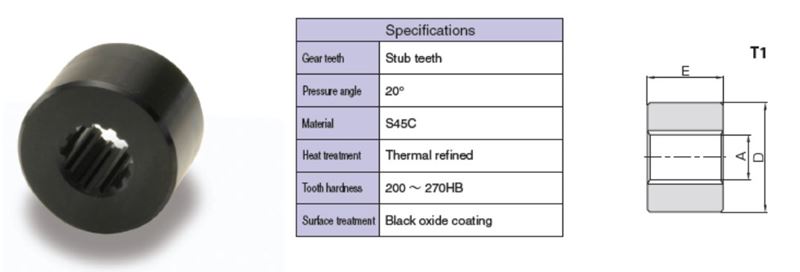

Item #	List Price	Module	No. of teeth	Internal Diameter (A)	Outer Diameter (D)	Face Width (E)	CAD	Add To Cart/Request Quote

SVI17-40	QUOTE	N/A 1.667	N/A 8	N/A 0.539 in13.7 mm	N/A 1.575 in40 mm	N/A 0.984 in25 mm	N/A	Add To Cart Request Quote
SVI20-45	QUOTE	N/A 1.667	N/A 10	N/A 0.657 in16.7 mm	N/A 1.772 in45 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SVI25-55	QUOTE	N/A 1.667	N/A 13	N/A 0.854 in21.7 mm	N/A 2.165 in55 mm	N/A 1.496 in38 mm	N/A	Add To Cart Request Quote
SVI30-65	QUOTE	N/A 1.667	N/A 16	N/A 1.051 in26.7 mm	N/A 2.559 in65 mm	N/A 1.772 in45 mm	N/A	Add To Cart Request Quote
