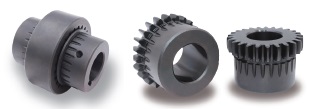

Gear Couplings Inner hubs(GC)
Other Products
Gear teeth are induction hardened for durability, and are also standardized for easier connection.
1 2
Clear
Filter
Bore Type
Module
No. of teeth
Bore (A) (in)
Bore (A) (mm)
Pitch Diameter (C) (in)
Pitch Diameter (C) (mm)
Item # |
List Price |
Bore Type |
Module |
No. of teeth |
Bore (A) |
Pitch Diameter (C) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| GC1-12S GC1-12S/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-20 GC1-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-22 GC1-22/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.866 in22 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-25 GC1-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC2-20S GC2-20S/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 40 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | CAD N/A |
Add To Cart
Request Quote |
| GC2-30 GC2-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2 | No. of teeth N/A 40 | Bore (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 3.150 in80 mm | CAD N/A |
Add To Cart
Request Quote |
| GC2-32 GC2-32/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2 | No. of teeth N/A 40 | Bore (A) N/A 1.260 in32 mm | Pitch Diameter (C) N/A 3.150 in80 mm | CAD N/A |
Add To Cart
Request Quote |
| GC2-35 GC2-35/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2 | No. of teeth N/A 40 | Bore (A) N/A 1.378 in35 mm | Pitch Diameter (C) N/A 3.150 in80 mm | CAD N/A |
Add To Cart
Request Quote |
| GC2-40 GC2-40/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2 | No. of teeth N/A 40 | Bore (A) N/A 1.575 in40 mm | Pitch Diameter (C) N/A 3.150 in80 mm | CAD N/A |
Add To Cart
Request Quote |
| GC3-20S GC3-20S/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2.5 | No. of teeth N/A 42 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 4.134 in105 mm | CAD N/A |
Add To Cart
Request Quote |
| GC3-45 GC3-45/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2.5 | No. of teeth N/A 42 | Bore (A) N/A 1.772 in45 mm | Pitch Diameter (C) N/A 4.134 in105 mm | CAD N/A |
Add To Cart
Request Quote |
| GC3-50 GC3-50/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Finished | Module N/A 2.5 | No. of teeth N/A 42 | Bore (A) N/A 1.969 in50 mm | Pitch Diameter (C) N/A 4.134 in105 mm | CAD N/A |
Add To Cart
Request Quote |
| GC-0 GC-0/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A | Module N/A | No. of teeth N/A | Bore (A) N/A | Pitch Diameter (C) N/A | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ12 GC1-12SJ12/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ14 GC1-12SJ14/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ15 GC1-12SJ15/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ16 GC1-12SJ16/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ17 GC1-12SJ17/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ18 GC1-12SJ18/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ19 GC1-12SJ19/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ20 GC1-12SJ20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ22 GC1-12SJ22/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC1-12SJ25 GC1-12SJ25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | CAD N/A |
Add To Cart
Request Quote |
| GC2-20SJ20 GC2-20SJ20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 40 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | CAD N/A |
Add To Cart
Request Quote |
| GC2-20SJ22 GC2-20SJ22/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Bore Type N/A Plain | Module N/A 2 | No. of teeth N/A 40 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | CAD N/A |
Add To Cart
Request Quote |
