Stainless Steel Miter Gears (SUM)
Miter Gears
Suitable for food machinery due to SUS303’s rust-resistant quality.
Clear
Filter
Module
No. of Teeth

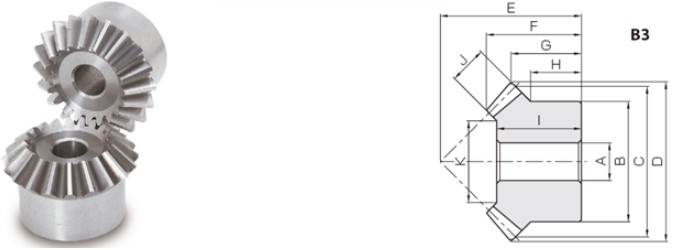

Shape
Bore (A) (in)
Bore (A) (mm)
Pitch Diameter (C) (in)
Pitch Diameter (C) (mm)
Outer Diameter (D) (in)
Outer Diameter (D) (mm)
Item # |
List Price |
Module |
No. of Teeth |
Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| SUM1.5-20 SUM1.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM1.5-25 SUM1.5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.560 in39.62 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM1.5-30 SUM1.5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.855 in47.12 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM1-20 SUM1-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM1-25 SUM1-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.040 in26.41 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM1-30 SUM1-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.237 in31.41 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM2.5-20 SUM2.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM2.5-25 SUM2.5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.04 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM2.5-30 SUM2.5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.092 in78.54 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM2-20 SUM2-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM2-25 SUM2-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM2-30 SUM2-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.474 in62.83 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM3-20 SUM3-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM3-25 SUM3-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM3-30 SUM3-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.710 in94.24 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM4-20 SUM4-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.372 in85.65 mm | CAD N/A |
Add To Cart
Request Quote |
| SUM4-25 SUM4-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 1.102 in28 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.160 in105.66 mm | CAD N/A |
Add To Cart
Request Quote |
