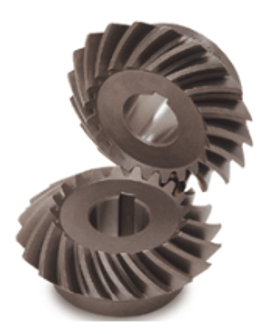

Spiral Miter Gears (MMSA·MMSB)
Miter Gears
Ready to use without performing secondary operations. Strong and abrasion resistant.
1 2
Clear
Filter

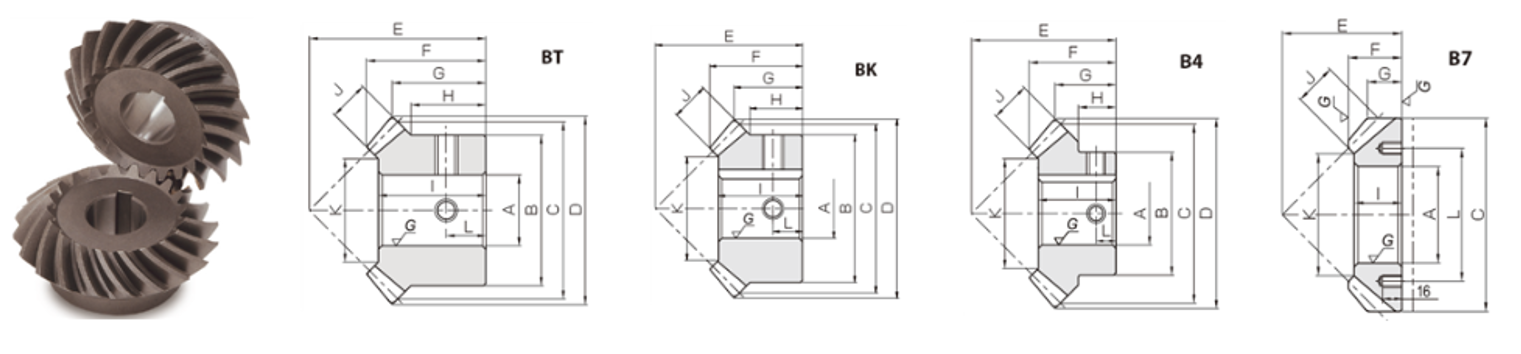

Module
No. of Teeth
Shape
Bore (A) (in)
Bore (A) (mm)
Pitch Diameter (C) (in)
Pitch Diameter (C) (mm)
Outer Diameter (D) (in)
Outer Diameter (D) (mm)
Item # |
List Price |
Module |
No. of Teeth |
Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| MMSA1.5-20L MMSA1.5-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.256 in31.9 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA1.5-20R MMSA1.5-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.256 in31.9 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA10-20L MMSA10-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 10 | No. of Teeth N/A 20 | Shape N/A B7 | Bore (A) N/A 3.937 in100 mm | Pitch Diameter (C) N/A 7.874 in200 mm | Outer Diameter (D) N/A | CAD N/A |
Add To Cart
Request Quote |
| MMSA10-20R MMSA10-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 10 | No. of Teeth N/A 20 | Shape N/A B7 | Bore (A) N/A 3.937 in100 mm | Pitch Diameter (C) N/A 7.874 in200 mm | Outer Diameter (D) N/A | CAD N/A |
Add To Cart
Request Quote |
| MMSA1-20L MMSA1-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.838 in21.29 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA1-20R MMSA1-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.838 in21.29 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA2.5-20L MMSA2.5-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.094 in53.2 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA2.5-20R MMSA2.5-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.094 in53.2 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA2-20L MMSA2-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.674 in42.52 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA2-20R MMSA2-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.674 in42.52 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA3.5-20L MMSA3.5-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.5 | No. of Teeth N/A 20 | Shape N/A B4 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 2.756 in70 mm | Outer Diameter (D) N/A 2.934 in74.53 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA3.5-20R MMSA3.5-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.5 | No. of Teeth N/A 20 | Shape N/A B4 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 2.756 in70 mm | Outer Diameter (D) N/A 2.934 in74.53 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA3-20L MMSA3-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.519 in63.99 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA3-20R MMSA3-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.519 in63.99 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA4-20L MMSA4-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 20 | Shape N/A B4 | Bore (A) N/A 1.102 in28 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.346 in84.99 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA4-20R MMSA4-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 20 | Shape N/A B4 | Bore (A) N/A 1.102 in28 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.346 in84.99 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA5-20L MMSA5-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | No. of Teeth N/A 20 | Shape N/A B4 | Bore (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.183 in106.25 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA5-20R MMSA5-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | No. of Teeth N/A 20 | Shape N/A B4 | Bore (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.183 in106.25 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA6-20L MMSA6-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 6 | No. of Teeth N/A 20 | Shape N/A B4 | Bore (A) N/A 1.575 in40 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Outer Diameter (D) N/A 5.023 in127.59 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA6-20R MMSA6-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 6 | No. of Teeth N/A 20 | Shape N/A B4 | Bore (A) N/A 1.575 in40 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Outer Diameter (D) N/A 5.023 in127.59 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA8-20L MMSA8-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 8 | No. of Teeth N/A 20 | Shape N/A B7 | Bore (A) N/A 3.150 in80 mm | Pitch Diameter (C) N/A 6.299 in160 mm | Outer Diameter (D) N/A 6.299 in160 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSA8-20R MMSA8-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 8 | No. of Teeth N/A 20 | Shape N/A B7 | Bore (A) N/A 3.150 in80 mm | Pitch Diameter (C) N/A 6.299 in160 mm | Outer Diameter (D) N/A 6.299 in160 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSB1.5-20L MMSB1.5-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.256 in31.9 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSB1.5-20R MMSB1.5-20R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.256 in31.9 mm | CAD N/A |
Add To Cart
Request Quote |
| MMSB1-20L MMSB1-20L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.838 in21.29 mm | CAD N/A |
Add To Cart
Request Quote |
