Plastic Miter Gears (PM)

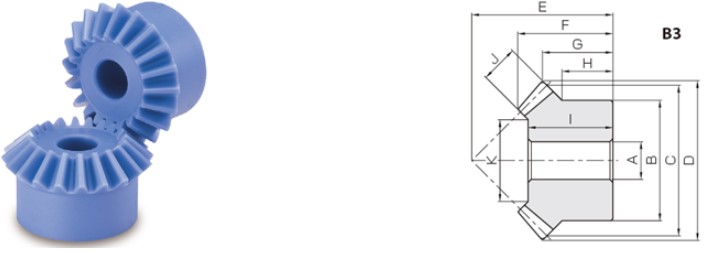

Miter Gears
MC nylon products are light and can be used without lubricant.
Item # |
List Price |
Module |
No. of Teeth |
Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| PM1.25-20 PM1.25-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.25 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.054 in26.77 mm | CAD N/A |
Add To Cart
Request Quote |
| PM1.25-25 PM1.25-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.25 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.230 in31.25 mm | Outer Diameter (D) N/A 1.300 in33.02 mm | CAD N/A |
Add To Cart
Request Quote |
| PM1.5-20 PM1.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm | CAD N/A |
Add To Cart
Request Quote |
| PM1.5-25 PM1.5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.560 in39.62 mm | CAD N/A |
Add To Cart
Request Quote |
| PM1.5-30 PM1.5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.855 in47.12 mm | CAD N/A |
Add To Cart
Request Quote |
| PM1-20 PM1-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm | CAD N/A |
Add To Cart
Request Quote |
| PM1-25 PM1-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.040 in26.41 mm | CAD N/A |
Add To Cart
Request Quote |
| PM1-30 PM1-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.237 in31.41 mm | CAD N/A |
Add To Cart
Request Quote |
| PM2.5-20 PM2.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm | CAD N/A |
Add To Cart
Request Quote |
| PM2.5-25 PM2.5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.04 mm | CAD N/A |
Add To Cart
Request Quote |
| PM2.5-30 PM2.5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.092 in78.54 mm | CAD N/A |
Add To Cart
Request Quote |
| PM2-20 PM2-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm | CAD N/A |
Add To Cart
Request Quote |
| PM2-25 PM2-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm | CAD N/A |
Add To Cart
Request Quote |
| PM2-30 PM2-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.474 in62.83 mm | CAD N/A |
Add To Cart
Request Quote |
| PM3.5-20 PM3.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.756 in70 mm | Outer Diameter (D) N/A 2.951 in74.95 mm | CAD N/A |
Add To Cart
Request Quote |
| PM3-20 PM3-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm | CAD N/A |
Add To Cart
Request Quote |
| PM3-25 PM3-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm | CAD N/A |
Add To Cart
Request Quote |
| PM3-30 PM3-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.710 in94.24 mm | CAD N/A |
Add To Cart
Request Quote |
| PM4-20 PM4-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.372 in85.66 mm | CAD N/A |
Add To Cart
Request Quote |
