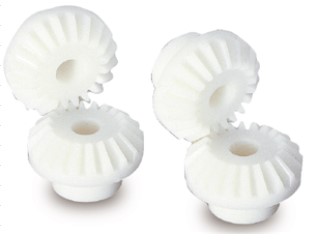

Injection Molded Miter Gears (DM) On KHK Gears

Injection molded, mass-produced products, suitable for office machines.

1 - 4 of 4 | Results Per Page | View | Unit of Measure

Request Information Compare Items

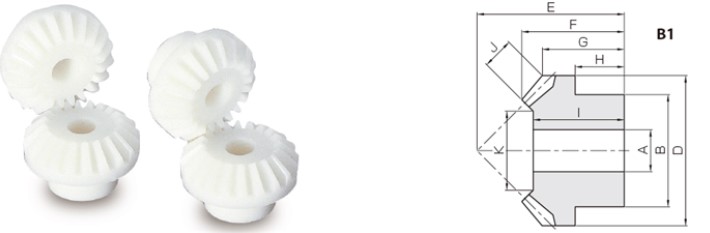

Item #	List Price	Module	No. of Teeth	Shape	Bore (A)	Pitch Diameter (C)	Outer Diameter (D)	CAD	Add To Cart/Request Quote

DM0.5-20	QUOTE	N/A 0.5	N/A 20	N/A B1	N/A 0.118 in3 mm	N/A 0.394 in10 mm	N/A 0.422 in10.71 mm	N/A	Add To Cart Request Quote
DM0.8-20	QUOTE	N/A 0.8	N/A 20	N/A B1	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.674 in17.13 mm	N/A	Add To Cart Request Quote
DM1.5-20	QUOTE	N/A 1.5	N/A 20	N/A B1	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.265 in32.12 mm	N/A	Add To Cart Request Quote
DM1-20	QUOTE	N/A 1	N/A 20	N/A B1	N/A 0.236 in6 mm	N/A 0.787 in20 mm	N/A 0.843 in21.41 mm	N/A	Add To Cart Request Quote

1 - 4 of 4 | Results Per Page | View | Unit of Measure
