Finished Bore Stainless Miter Gears (SUMA)
Miter Gears
Stainless steel products, usable without remachining.
Item # |
List Price |
Module |
No. of Teeth |

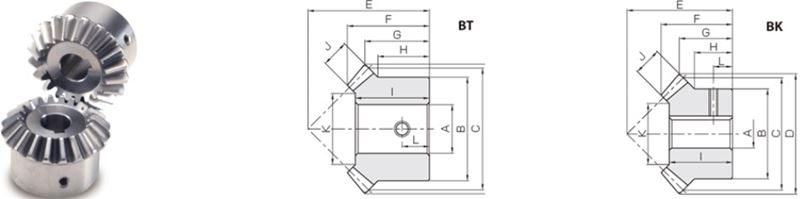

Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| SUMA1.5-20 SUMA1.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA1.5-25 SUMA1.5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A BT | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.560 in39.62 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA1-20 SUMA1-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA1-25 SUMA1-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of Teeth N/A 25 | Shape N/A BT | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.040 in26.41 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA2.5-20 SUMA2.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA2.5-25 SUMA2.5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.04 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA2-20 SUMA2-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA2-25 SUMA2-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA3-20 SUMA3-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA3-25 SUMA3-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA4-20 SUMA4-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.372 in85.65 mm | CAD N/A |
Add To Cart
Request Quote |
| SUMA4-25 SUMA4-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.160 in105.66 mm | CAD N/A |
Add To Cart
Request Quote |
