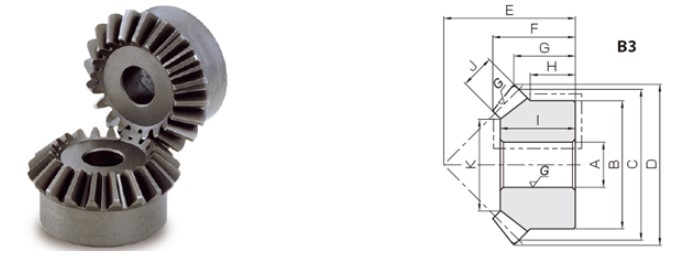

Carburized & Hardened Miter Gears (MM)
Miter Gears
Compared to SM miters, these are stronger and less abrasive, and allow secondary operations.
Item # |
List Price |
Module |
No. of Teeth |
Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| MM2.5-20 MM2.5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm | CAD N/A |
Add To Cart
Request Quote |
| MM2.5-25 MM2.5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.03 mm | CAD N/A |
Add To Cart
Request Quote |
| MM2.5-30 MM2.5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.092 in78.54 mm | CAD N/A |
Add To Cart
Request Quote |
| MM2-20 MM2-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm | CAD N/A |
Add To Cart
Request Quote |
| MM2-25 MM2-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm | CAD N/A |
Add To Cart
Request Quote |
| MM2-30 MM2-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.474 in62.83 mm | CAD N/A |
Add To Cart
Request Quote |
| MM3-20 MM3-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm | CAD N/A |
Add To Cart
Request Quote |
| MM3-25 MM3-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm | CAD N/A |
Add To Cart
Request Quote |
| MM3-30 MM3-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.710 in94.24 mm | CAD N/A |
Add To Cart
Request Quote |
| MM4-20 MM4-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.372 in85.66 mm | CAD N/A |
Add To Cart
Request Quote |
| MM4-25 MM4-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.160 in105.66 mm | CAD N/A |
Add To Cart
Request Quote |
| MM4-30 MM4-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 4 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 1.102 in28 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Outer Diameter (D) N/A 4.947 in125.66 mm | CAD N/A |
Add To Cart
Request Quote |
| MM5-20 MM5-20/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.215 in107.07 mm | CAD N/A |
Add To Cart
Request Quote |
| MM5-25 MM5-25/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 1.102 in28 mm | Pitch Diameter (C) N/A 4.921 in125 mm | Outer Diameter (D) N/A 5.200 in132.07 mm | CAD N/A |
Add To Cart
Request Quote |
| MM5-30 MM5-30/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 1.102 in28 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Outer Diameter (D) N/A 6.184 in157.07 mm | CAD N/A |
Add To Cart
Request Quote |
