Steel Ring Gears (SIR) On KHK Gears

KHK USA Metric Gears

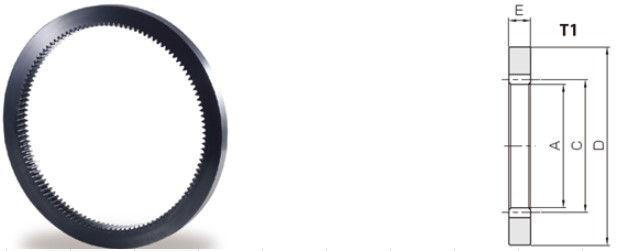

Ring gear large in size / number of tooth. It can be cut to make segment gears and corner racks.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

Item #	List Price	Module	No. of teeth	Shape	Internal Diameter (A)	Pitch Diameter (C)	Face Width (E)	CAD	Add To Cart/Request Quote

SIR2.5-120	QUOTE	N/A 2.5	N/A 120	N/A T1	N/A 11.614 in295 mm	N/A 11.811 in300 mm	N/A 0.984 in25 mm	N/A	Add To Cart Request Quote
SIR2.5-200	QUOTE	N/A 2.5	N/A 200	N/A T1	N/A 19.488 in495 mm	N/A 19.685 in500 mm	N/A 0.984 in25 mm	N/A	Add To Cart Request Quote
SIR2-120	QUOTE	N/A 2	N/A 120	N/A T1	N/A 9.291 in236 mm	N/A 9.449 in240 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SIR2-200	QUOTE	N/A 2	N/A 200	N/A T1	N/A 15.591 in396 mm	N/A 15.748 in400 mm	N/A 0.787 in20 mm	N/A	Add To Cart Request Quote
SIR3-120	QUOTE	N/A 3	N/A 120	N/A T1	N/A 13.937 in354 mm	N/A 14.173 in360 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
SIR3-160	QUOTE	N/A 3	N/A 160	N/A T1	N/A 18.661 in474 mm	N/A 18.898 in480 mm	N/A 1.181 in30 mm	N/A	Add To Cart Request Quote
