Steel Internal Gears (SI)
Internal Gears

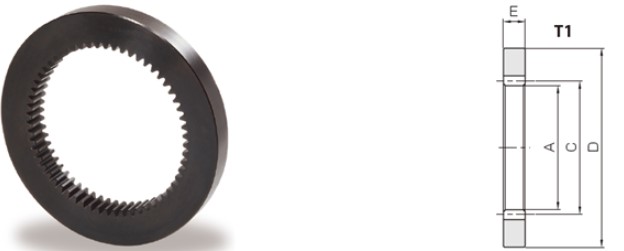

A popular type of internal gear; low cost and suitable f or many appl i cations.
Item # |
List Price |
Module |
No. of teeth |
Shape |
Internal Diameter (A) |
Pitch Diameter (C) |
Face Width (E) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| SI0.5-100 SI0.5-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.5 | No. of teeth N/A 100 | Shape N/A T1 | Internal Diameter (A) N/A 1.929 in49 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Face Width (E) N/A 0.197 in5 mm | CAD N/A |
Add To Cart
Request Quote |
| SI0.5-60 SI0.5-60/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.5 | No. of teeth N/A 60 | Shape N/A T1 | Internal Diameter (A) N/A 1.142 in29 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Face Width (E) N/A 0.197 in5 mm | CAD N/A |
Add To Cart
Request Quote |
| SI0.5-80 SI0.5-80/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.5 | No. of teeth N/A 80 | Shape N/A T1 | Internal Diameter (A) N/A 1.535 in39 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Face Width (E) N/A 0.197 in5 mm | CAD N/A |
Add To Cart
Request Quote |
| SI0.8-100 SI0.8-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.8 | No. of teeth N/A 100 | Shape N/A T1 | Internal Diameter (A) N/A 3.087 in78.4 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Face Width (E) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| SI0.8-60 SI0.8-60/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.8 | No. of teeth N/A 60 | Shape N/A T1 | Internal Diameter (A) N/A 1.827 in46.4 mm | Pitch Diameter (C) N/A 1.890 in48 mm | Face Width (E) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| SI0.8-80 SI0.8-80/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 0.8 | No. of teeth N/A 80 | Shape N/A T1 | Internal Diameter (A) N/A 2.457 in62.4 mm | Pitch Diameter (C) N/A 2.520 in64 mm | Face Width (E) N/A 0.315 in8 mm | CAD N/A |
Add To Cart
Request Quote |
| SI1.5-100 SI1.5-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of teeth N/A 100 | Shape N/A T1 | Internal Diameter (A) N/A 5.787 in147 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Face Width (E) N/A 0.591 in15 mm | CAD N/A |
Add To Cart
Request Quote |
| SI1.5-50 SI1.5-50/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of teeth N/A 50 | Shape N/A T1 | Internal Diameter (A) N/A 2.835 in72 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Face Width (E) N/A 0.591 in15 mm | CAD N/A |
Add To Cart
Request Quote |
| SI1.5-60 SI1.5-60/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of teeth N/A 60 | Shape N/A T1 | Internal Diameter (A) N/A 3.425 in87 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Face Width (E) N/A 0.591 in15 mm | CAD N/A |
Add To Cart
Request Quote |
| SI1.5-80 SI1.5-80/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1.5 | No. of teeth N/A 80 | Shape N/A T1 | Internal Diameter (A) N/A 4.606 in117 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Face Width (E) N/A 0.591 in15 mm | CAD N/A |
Add To Cart
Request Quote |
| SI1-100 SI1-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of teeth N/A 100 | Shape N/A T1 | Internal Diameter (A) N/A 3.858 in98 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Face Width (E) N/A 0.394 in10 mm | CAD N/A |
Add To Cart
Request Quote |
| SI1-60 SI1-60/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of teeth N/A 60 | Shape N/A T1 | Internal Diameter (A) N/A 2.283 in58 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Face Width (E) N/A 0.394 in10 mm | CAD N/A |
Add To Cart
Request Quote |
| SI1-80 SI1-80/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 1 | No. of teeth N/A 80 | Shape N/A T1 | Internal Diameter (A) N/A 3.071 in78 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Face Width (E) N/A 0.394 in10 mm | CAD N/A |
Add To Cart
Request Quote |
| SI2.5-50 SI2.5-50/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of teeth N/A 50 | Shape N/A T1 | Internal Diameter (A) N/A 4.724 in120 mm | Pitch Diameter (C) N/A 4.921 in125 mm | Face Width (E) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SI2.5-60 SI2.5-60/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of teeth N/A 60 | Shape N/A T1 | Internal Diameter (A) N/A 5.709 in145 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Face Width (E) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SI2.5-80 SI2.5-80/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2.5 | No. of teeth N/A 80 | Shape N/A T1 | Internal Diameter (A) N/A 7.677 in195 mm | Pitch Diameter (C) N/A 7.874 in200 mm | Face Width (E) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SI2-100 SI2-100/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of teeth N/A 100 | Shape N/A T1 | Internal Diameter (A) N/A 7.717 in196 mm | Pitch Diameter (C) N/A 7.874 in200 mm | Face Width (E) N/A 0.787 in20 mm | CAD N/A |
Add To Cart
Request Quote |
| SI2-50 SI2-50/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of teeth N/A 50 | Shape N/A T1 | Internal Diameter (A) N/A 3.780 in96 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Face Width (E) N/A 0.787 in20 mm | CAD N/A |
Add To Cart
Request Quote |
| SI2-60 SI2-60/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of teeth N/A 60 | Shape N/A T1 | Internal Diameter (A) N/A 4.567 in116 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Face Width (E) N/A 0.787 in20 mm | CAD N/A |
Add To Cart
Request Quote |
| SI2-80 SI2-80/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | No. of teeth N/A 80 | Shape N/A T1 | Internal Diameter (A) N/A 6.142 in156 mm | Pitch Diameter (C) N/A 6.299 in160 mm | Face Width (E) N/A 0.787 in20 mm | CAD N/A |
Add To Cart
Request Quote |
| SI3-50 SI3-50/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of teeth N/A 50 | Shape N/A T1 | Internal Diameter (A) N/A 5.669 in144 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Face Width (E) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
| SI3-60 SI3-60/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | No. of teeth N/A 60 | Shape N/A T1 | Internal Diameter (A) N/A 6.850 in174 mm | Pitch Diameter (C) N/A 7.087 in180 mm | Face Width (E) N/A 1.181 in30 mm | CAD N/A |
Add To Cart
Request Quote |
