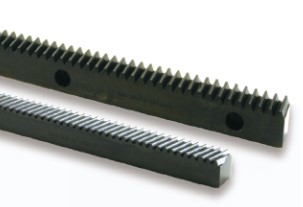

Steel Helical Racks (SRH - SRHF - SRHFD)
Helical Gears
Item # |
List Price |
Module |
Effective Number of Teeth |

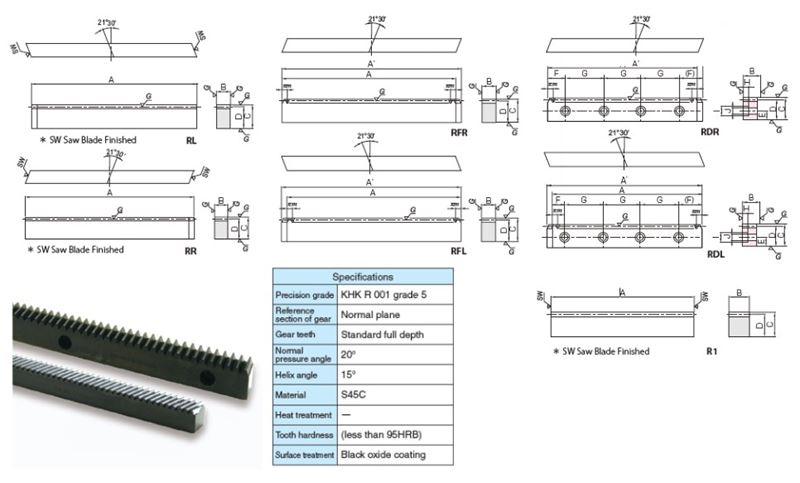

Shape |
Total Length Rack (A) |
Face Width (B) |
CAD |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| SRH2-1000L SRH2-1000L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 152 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH2-1000R SRH2-1000R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 152 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH2-100L SRH2-100L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 12 | Shape N/A RL | Total Length Rack (A) N/A 3.740 in95 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH2-100R SRH2-100R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 12 | Shape N/A RR | Total Length Rack (A) N/A 3.740 in95 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH2-500L SRH2-500L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 75 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH2-500R SRH2-500R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 75 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH3-1000L SRH3-1000L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 101 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH3-1000R SRH3-1000R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 101 | Shape N/A R1 | Total Length Rack (A) N/A 39.764 in1010 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH3-100L SRH3-100L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 7 | Shape N/A RL | Total Length Rack (A) N/A 3.740 in95 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH3-100R SRH3-100R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 7 | Shape N/A RR | Total Length Rack (A) N/A 3.740 in95 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH3-500L SRH3-500L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 49 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRH3-500R SRH3-500R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 49 | Shape N/A R1 | Total Length Rack (A) N/A 19.882 in505 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRHF2-1000L SRHF2-1000L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 153 | Shape N/A RFL | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRHF2-1000R SRHF2-1000R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 153 | Shape N/A RFR | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRHF3-1000L SRHF3-1000L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 102 | Shape N/A RFL | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRHF3-1000R SRHF3-1000R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 102 | Shape N/A RFR | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRHFD2-1000L SRHFD2-1000L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 153 | Shape N/A RDL | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRHFD2-1000R SRHFD2-1000R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 2 | Effective Number of Teeth N/A 153 | Shape N/A RDR | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 0.984 in25 mm | CAD N/A |
Add To Cart
Request Quote |
| SRHFD3-1000L SRHFD3-1000L/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 102 | Shape N/A RDL | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
| SRHFD3-1000R SRHFD3-1000R/ImgCustom/1002/placeholder_notavailable.gif | QUOTE | Module N/A 3 | Effective Number of Teeth N/A 102 | Shape N/A RDR | Total Length Rack (A) N/A 39.183 in995.24 mm | Face Width (B) N/A 1.378 in35 mm | CAD N/A |
Add To Cart
Request Quote |
