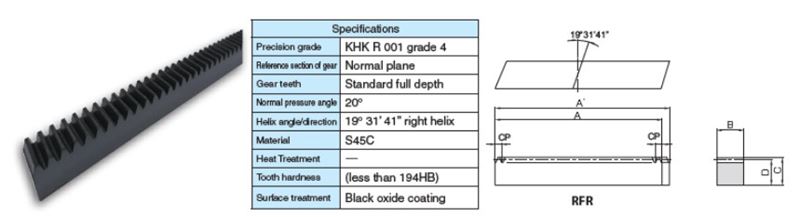

Helical Racks (SRHEF) On KHK Gears

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	List Price	Module	No. of teeth	Face Width (B)	Height (C)	Total Length (G)	CAD	Add To Cart/Request Quote

SRHEF1.5-1000R	QUOTE	N/A 1.5	N/A 200	N/A 0.669 in17 mm	N/A 0.669 in17 mm	N/A 39.607 in1006.03 mm	N/A	Add To Cart Request Quote
SRHEF2-1000R	QUOTE	N/A 2	N/A 150	N/A 0.945 in24 mm	N/A 0.945 in24 mm	N/A 39.705 in1008.51 mm	N/A	Add To Cart Request Quote
SRHEF3-1000R	QUOTE	N/A 3	N/A 100	N/A 1.142 in29 mm	N/A 1.142 in29 mm	N/A 39.775 in1010.29 mm	N/A	Add To Cart Request Quote
SRHEF4-1000R	QUOTE	N/A 4	N/A 75	N/A 1.535 in39 mm	N/A 1.535 in39 mm	N/A 39.915 in1013.83 mm	N/A	Add To Cart Request Quote
SRHEF5-1000R	QUOTE	N/A 5	N/A 60	N/A 1.929 in49 mm	N/A 1.535 in39 mm	N/A 40.054 in1017.38 mm	N/A	Add To Cart Request Quote
SRHEF6-1000R	QUOTE	N/A 6	N/A 50	N/A 2.323 in59 mm	N/A 1.929 in49 mm	N/A 40.194 in1020.93 mm	N/A	Add To Cart Request Quote
